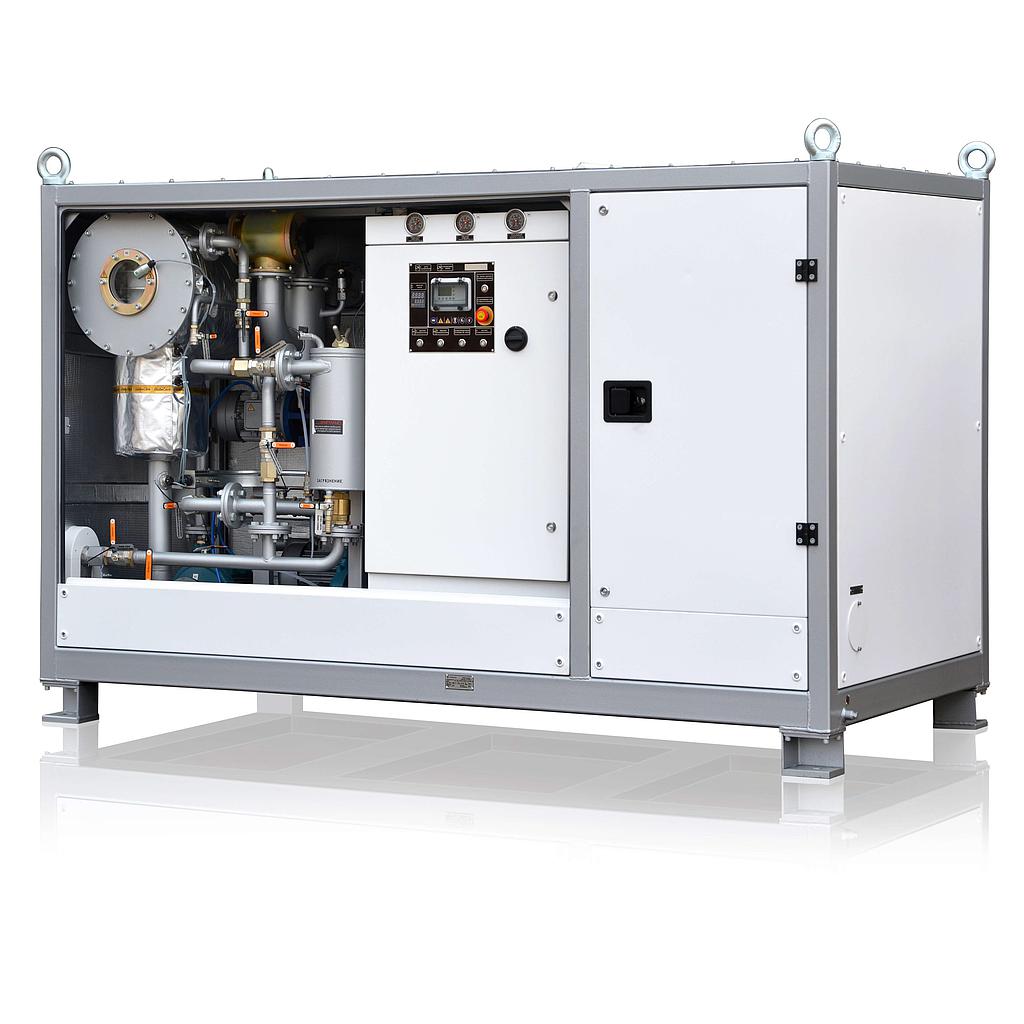

GlobeCore CMM-4/7 Portable oil degassing unit (4/1059.0 m3/hour / gals; 7/1853.0 m3/hour / gals)

Capacity, m3/hour / gals. per hour:

•degassing, nitrogenation, drying and filtration mode: 4/1059.0

•heating and filtration mode: 7/1853.0

Capacity adjustment range, m3/hour / gals. per hour: 0.5-4.0/132-1059.0

*Processed oil parameters:

•volumetric gas content %, max: 0.1

•mass moisture content, g/ton, max: 10

•ISO 4406 purity class: 16/14/12

•filtration fineness, micron: 5

•dielectric strength, kV, min: 70

Oil temperature in heating mode, ºС/ ºF: 90/194

Filtration rate: ≥50

Outlet pressure, Mpa: 0.2

Oil output head, meters/yards: 20/22

Oil heater power, kW: 50

Oil heater mean surface power, W/cm2, max: 1.15

Max power consumption, kW: 65

Electric power:

•voltage, V: 400

•AC frequency, Hz: 50/60

Dimensions, mm (w/o trailer / with trailer):

– length: 2600/3750

– width: 1250/1840

– height: 1500/1940

Weight, kg (w/o trailer / with trailer): 1000/1400

* Note – Initial oil quality parameters:

•gas content: below 10.5% vol

•water content: below 0.005% (50 g/t)

•temperature: above 0 ºС.
