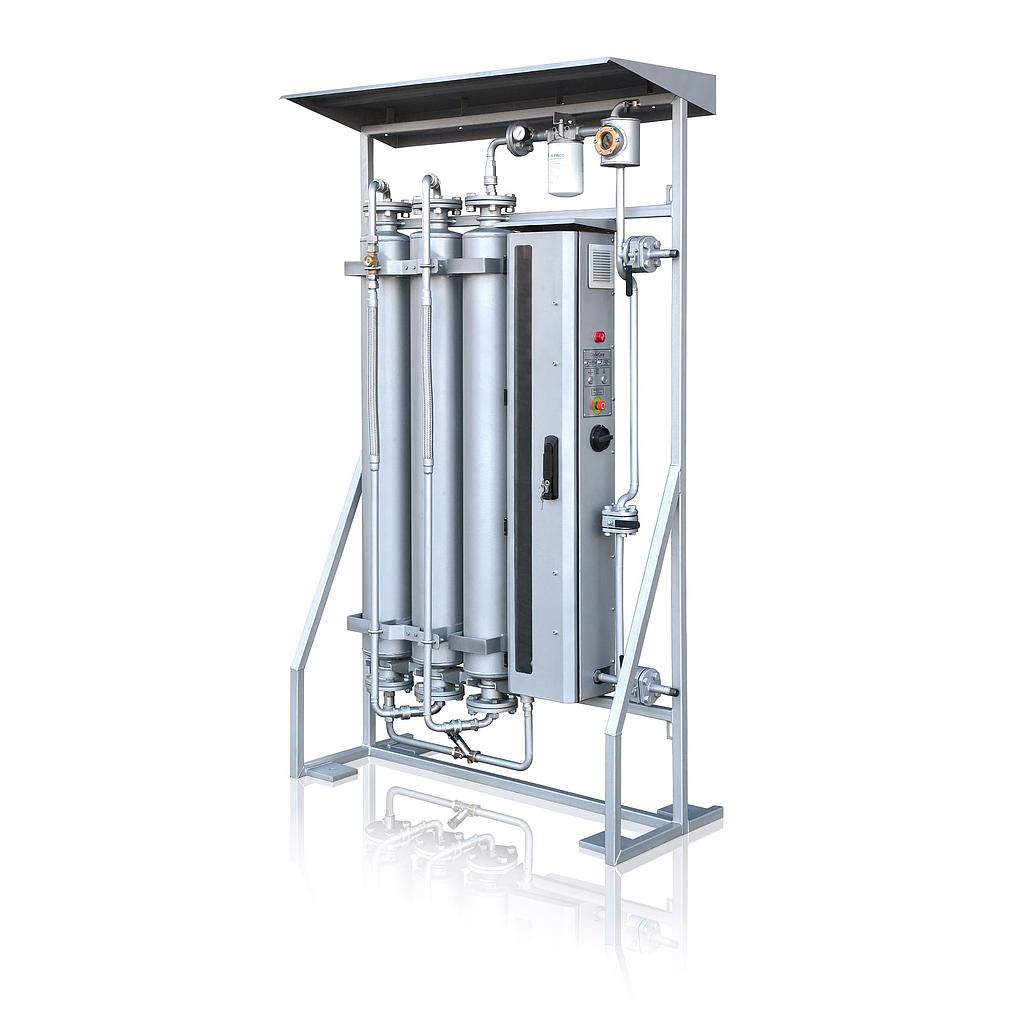

GlobeCore CMM-260C Online Transformer Dry-Out System (30 l/h; 0.25 kW)

Capacity, liters/hour (gpm), not less than: 30 (0.13)

Water absorption capacity, liters (gal): 9 (2.4)

Adsorbent load per column, kg (lbs): 20 (44)

Parameters of processed oil:

– max moisture content, ppm: < 5

– ISO 4406 class: -/14/12

– min dielectric strength, kV: >65

Output pressure, bar (psi): 2 (29)

Oil output head, m (in): 20 (790)

Max power required, kW: 0.25

Power supply:

- voltage, V: 400

- AC frequency, Hz: 50

Dimensions, mm (in), max:

– length: 1150 (45)

– width: 1980 (78)

– height: 490 (19)

Max weight, kg (lbs): 400 (880)
