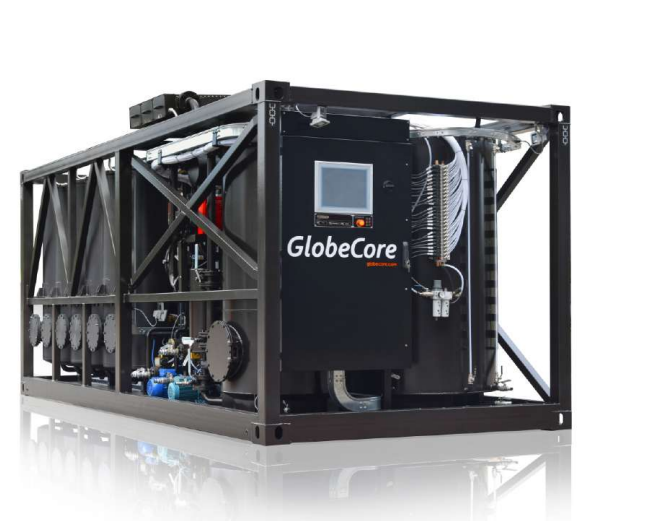

GlobeCore CMM-12R Mobile Oil Regeneration Unit (4 m3/h)

Maximal productivity, max, m3/h (gal/hour): 4 (1056)

Nominal productivity, max, m3/h (gal/hour): 1-2 (264-528)

The processed product losses in the regeneration mode, %: 2-25

Maximum acceptable product temperature, °C ( F): 90 (194)

Outlet pressure, bar (Psi): 2.5 (36)

Rated fineness of filtration, µm:

+ coarse filter, µm: 25

+ fine filter, µm: 0.3

Maximum power consumption, kW: 55

Weight of the adsorbent used, kg (pound): 1600 (3500)

The power supply parameters: Any options on customer's request

Overall dimensions, max, mm (in):

+ length: 5500 (217)

+ width : 2320 (91)

+ height: 2450 (96)

Weight, max, kg (pound): 6000 (13220)
