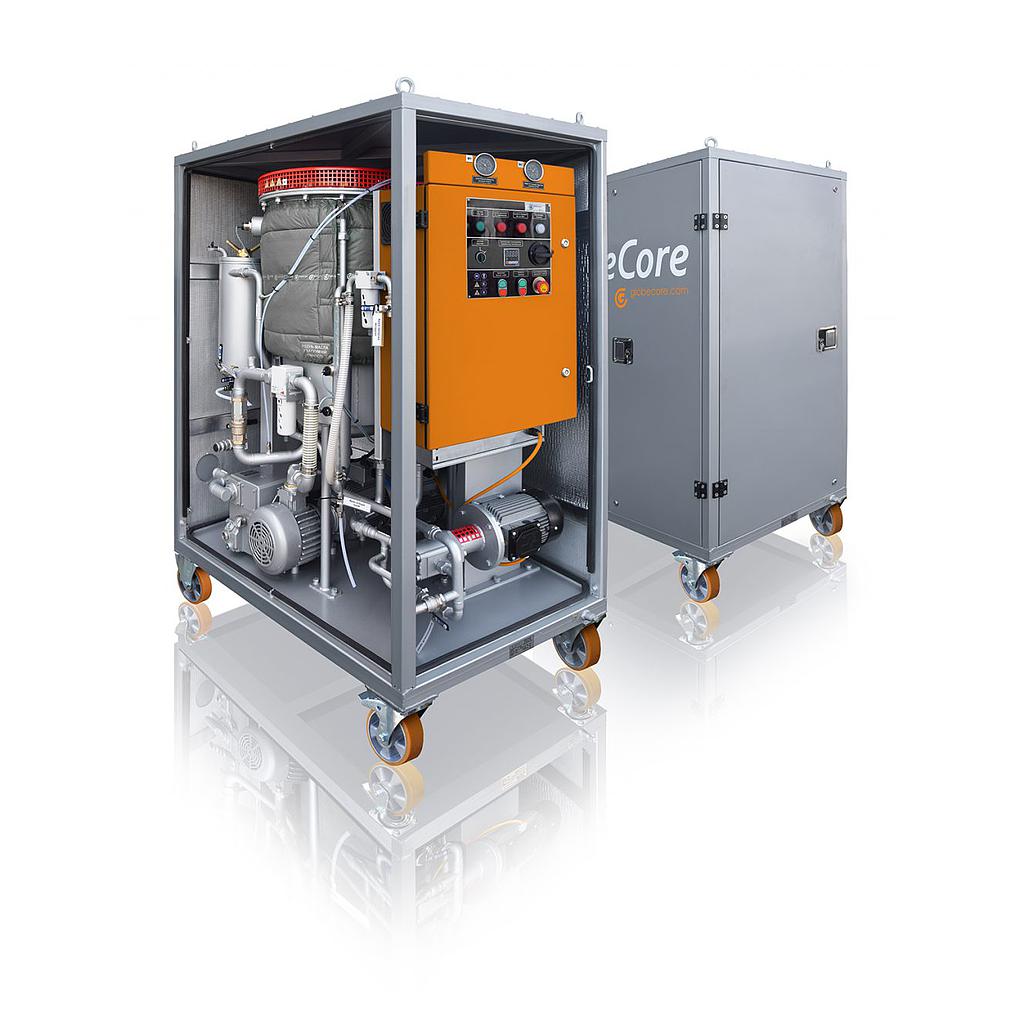

GlobeCore CMM-1 Mobile oil plant (1.0 m3/h; 29 kW)

Capacity, м3/hour / gals. per hour: 1.0/264.7

Max oil output temperature in heating mode, °C/°F: 60/140

Processed oil parameters*:

• mass moisture content, g/ton max: 10.0

• filtration fineness, micron: 5

Oil output head, meters /yards: 20/21.86

Max inlet pressure, Mpa: 0.1

Oil heater power, kW: 25.2

Oil heater max mean surface power, W/cm2: 1.1

Nominal power, kW: 29

50 Hz AC power voltage, V: 380

Dimensions, mm/ft:

– length: 1300//4’3’’

– width: 800/2’8’’

– height: 1550/5’1’’

Weight, kg/lbs: 540/1193

Note: * Initial oil parameters:

•mass moisture content – below 005% (50 g/ton)

•heating of oil in the unit to +60ºC ±5ºС/140ºF ±9ºF for 30 minutes;

•gas content below 10%.
