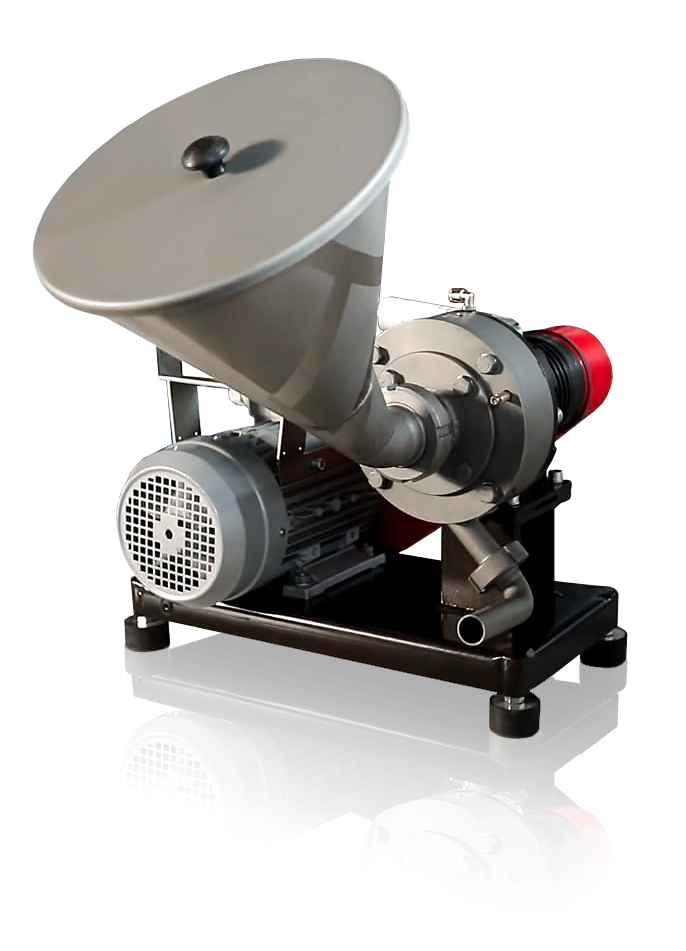

GlobeCore CLM-100.3 Colloid mill (0.1 m3/h; 5L; 3kW)

Unit capacity, m3/h (gpm): 0.1 (0.44)

Funnel input volume, L (gal): 5 (1.3)

Shaft seal type: labyrinth

Knife axial gap (preset), mm (in): 0.4…0.8 (1.5·10-2… 3·10-2)

Knife tip speed, m/s (mph), not more than: 40 (90)

Mill shaft and bearing rotation speed, rpm: 5,880

Electric motor shaft rotation speed, rpm: 2,940

Drive power, kW: 3

Power voltage, V: custom

Dimensions, mm, not more than:

· length: 600 (24)

· width: 700 (28)

· height: 650 (26)

Weight, not more than, kg (lb): 70 (154)
