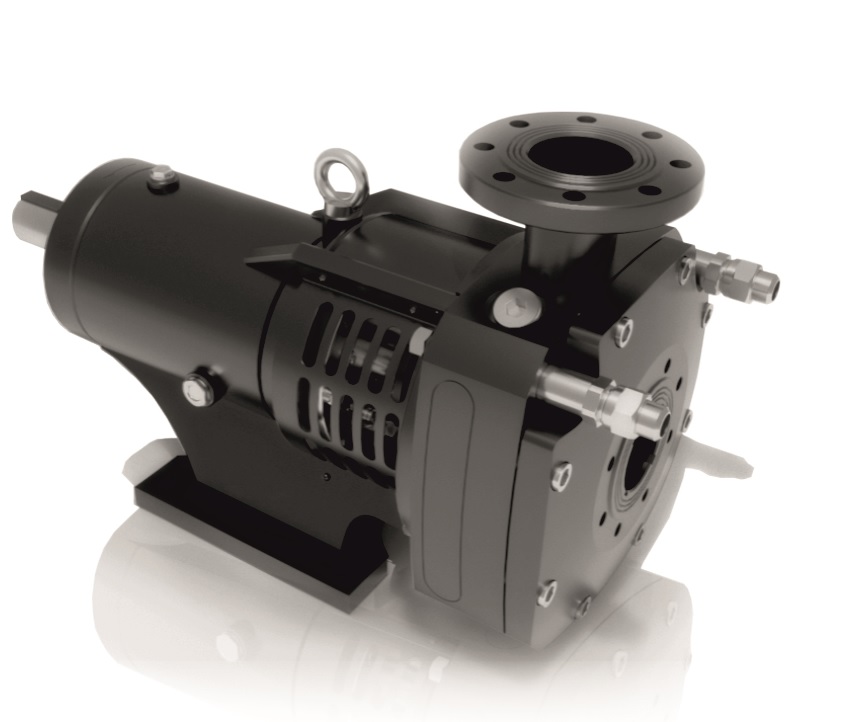

GlobeCore CLM-10/20 Colloid mill (20 m3/h; 75 kW)

Unit capacity, m3/h (gpm): 10…20 (44… 88)

Operating temperature, °C (°F), not more than: 200 (392)

Maximum pressure, bar (psi), not more than: 20 (290)

Product operating volume, L: flow

Shaft seal type: packing (mechanical)

Rotor/stator tooling type: chamber

Replaceable knife kit: optional

Knife axial gap (preset), mm : 0.2…2 (8·10-3… 8·10-2)

Knife radial gap mm (in): 0.3 (10-2)

Knife tip speed, m/s (mph), not more than: 52 (116)

Mill shaft and bearing rotation speed, rpm: 4,500

Electric motor shaft rotation speed, rpm: 3,000

Drive power, kW: 75 (90)

Power voltage, V: custom

Dimensions, mm (in), not more than:

· length: 1,200 (47)

· width: 1,000 (39)

· height: 850 (33)

Weight, kg (lbs), (max): 900 (1,985)
