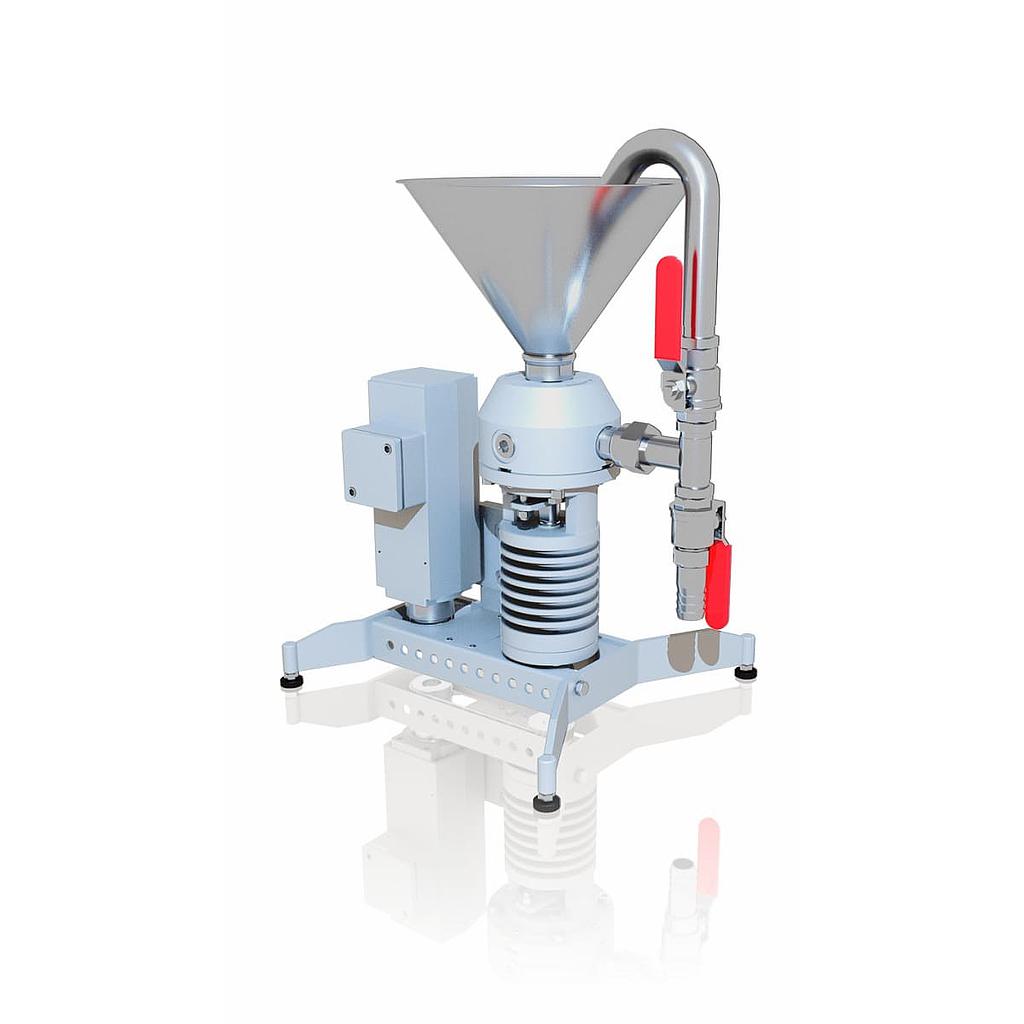

GlobeCore CLM-0.25.1 Colloid mill (25 L/h; 1.5L; 0.7 kW)

Capacity, L/h (gpm), (min): 25 (0.11)

Fill funnel volume, L (gal): 1.5 (0.4)

Operating temperature, °C (°F), (max): 150 (302)

Knife axial gap, mm (in): 0.25… 1.25 (9.8∙10-3… 4.9∙10-2)

Knife radial gap, mm (in): 0.25 (9.8∙10-3)

Knife tip speed, m/s (ips): 50-57 (1,968.5-2,244)

Rotation speed of mill shaft and electric drive, rpm: 16,750-19,250

Rated power of electric drive, kW: 0.7

Power circuit voltage at 50 Hz (three-phase), V: 400 (As requested by the customer)

Dimensions in operational position, mm (in), (max):

· length: 340 (13)/425 (17)

· width: 290 (11)

· height: 450 (18)

Weight, kg (lbs), (max): 15 (33)
