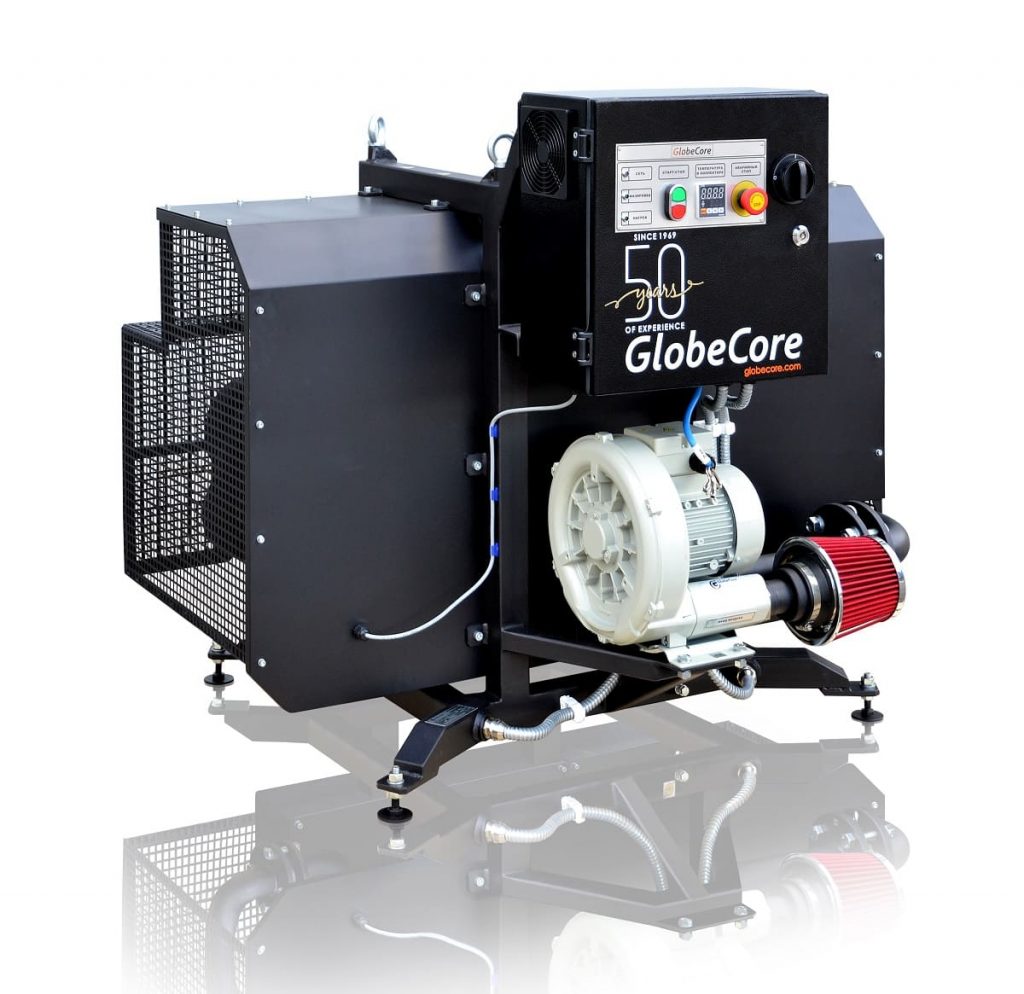

GlobeCore BDK-3 Catalytic converter (100 000 l/h; 21 kW)

Processed exhaust gas parameters:

Carbon monoxide (СО), mg/m3 (oz/gal): 3 (4,01⋅10^-7)

Hydrocarbons (СН), mg/m3 (oz/gal): 44 (5,88⋅10^-6)

NItrogen oxide (NO and NO2), mg/m3 (oz/gal): 2 (2,67⋅10^-7)

Compressor capacity, liters/hour (gpm): 100 000 (440)

Max temperature before the catalyst, ºС (ºF): 450 (842)

Heater power, kW: 20

Max power requirement, kW: 21

Power supply parameters:

– voltage, V: Customizable

– AC frequency, Hz: Customizable

Dimensions, mm (in):

– length: 910 (36)

– width: 1160 (46)

– height: 1020 (40)

Weight, kg (lbs): 230 (510)
