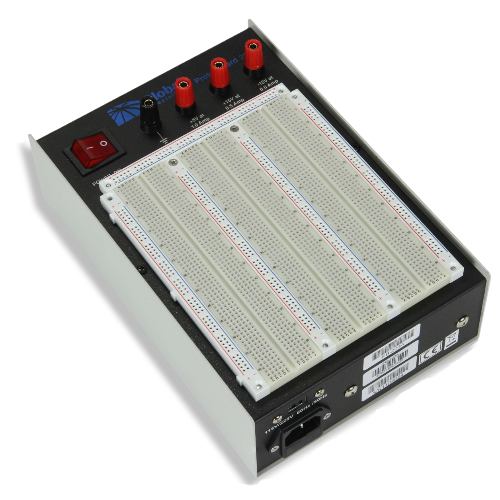

GLOBAL PB-203A Powered Breadboard

Input power Source: AC Line: 110/120VAC @ 60Hz, or 210-220VAC @ 50Hz

Power Supplies:

+ Fixed: +5V +/-0.2VDC, 1.0A max, current limited Load Regulation better than 0.8% +/- 0.02%/°C Ripple, <4mVp-p @1A

+ Fixed: +15VDC, Load Regulation better than 1% +/- 0.04%/°C, Ripple less that 10mVp-p @ 0.5A

+ Fixed: -15VDC Load Regulation better than 1% +/- 0.04%/°C Ripple less that 10mVp-p @ 0.5A

Binding Posts

+ (1) Black: Chassis Ground

+ (3) Red: Power Supply Outputs +5VDC, +15VDC & -15VDC

Breadboards: 2250 Tie points with (8) 100 pin and (2) 80 pin power rails and accommodates up to 24 (14 pin) IC's

Weight: 5lbs 5 oz (2.5kg)

Dimensions: 9.8 x 6.6 x3.3" (249 x 167 x 86.7mm)
