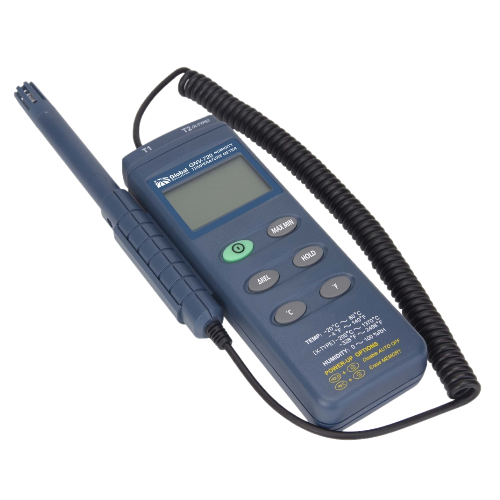

GLOBAL GNV-720 Humidity Temperature Meter

Measurement

Range Humidity: 0% to 100%

Temperature @ T1: -20 ˚C to +60 ˚C (-4 ˚F to +140 ˚F)

Temperature @ T2: -200 ˚C to +1370 ˚C ( -328 ˚F to +2498 ˚F)

Resolution

Humidity: 0.1 % RH

Temperature @ T1: 0.1 ˚C (0.1 ˚F)

Temperature @ T2 (CT3240*): -200 ˚C to +200˚C, 0.1 ˚C 200 ˚C to 1370 ˚C, 1 ˚C (-200 ˚F to +200 ˚F, 1 ˚F) (200 ˚F to 2498 ˚F, 1 ˚F)

Accuracy

Humidity: ± 2.5 % RH at 25 ˚C

Temperature @ T1: ± 0.7 ˚C (± 1.4 ˚F)*

Temperature @ T2: ± 0.5 % reading + 1 ˚C (± 0.5 % reading + 2˚F)

Response Time

Humidity: 75 s

Temperature: 40 s

Signal Output: RS-232 data output

Display: 4 digit LCD

Weight: 320 g

Dimensions:

+ Meter: 186 x 64 x 30 mm

+ Wand: 190 x 15(D) mm

Battery Life: Approx. 100 hrs w/ alkaline battery (9V)

Operating Environment: 0 ˚C to 50 ˚C (32 ˚F to 122 ˚F)

Total Memory (GNV-725): 16,300 data points
