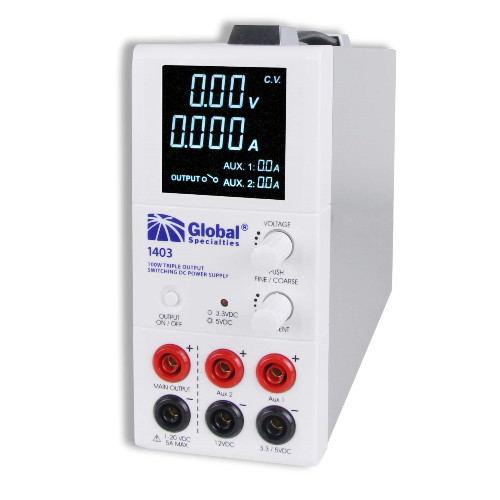

GLOBAL 1403 100W Triple Output Switching DC Power Supply (1.0 ~ 20 VDC; 0.25 ~ 5 A)

Input Voltage (Universal input): 100–240 VAC, 50/60 Hz

Full Load Input Current at 230 VAC: 0.83 A

Output Voltage Adjustable Range: 1.0 – 20 VDC

Output Current Adjustable Range: 0.25 – 5 A

Voltage Regulation:

+ Load from 10% to 90% Variation: 70 mV

+ Line from 90 to 264 VAC Variation: 25 mV

+ Ripple & Noise (peak to peak): ≤120 mV

Current Regulation:

+ Load from 10% to 90% Variation: 50 mA

+ Line from 90 to 264 VAC Variation: 20 mA

+ Ripple & Noise (peak to peak): ≤50 mA

Switching Operation Frequency: 50 kHz to 150 kHz

Aux Output 1: Fixed 3.3 /5 VDC. 1.8 mA cont. 2 A Max.

Aux Output 2: Fixed 12 VDC, 800 mA cont. 1 A Max.

Power Factor: >0.9

Efficiency at Maximum Power: ≥80.5%

Dimensions (WxHxD): 70 x 150 x 250 mm (2.8 x 6.0 x 9.8 in)

Weight: 2 kg (4.4 lbs)
