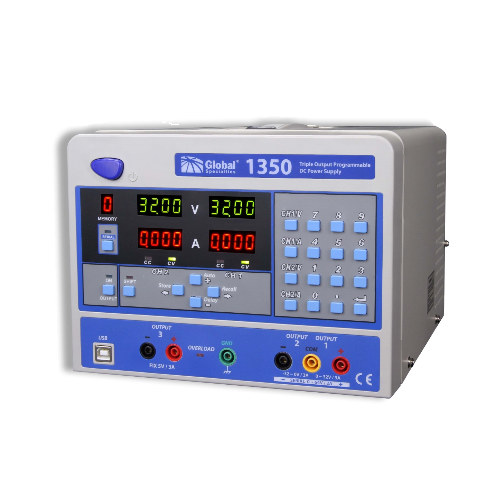

GLOBAL 1350 Triple Output Programmable DC Power Supply

Output: 0V ~ 32V, 0V ~ 32V, 5V Fixed / 0 ~ -3A, 0 ~ 3A, 3A Fixed

+ Over Voltage Protection: 0V ~ -33V, 0V ~ 33V, Over Load

Load Effect: ±20 mV / ±10 mA

Source Effect: ±20 mV / ±10 mA

Resolution: 10 mV / 1 mA

Program Accuracy (25 ): 0.5% ± 20 mV / 0.5% ± 10 mA

Ripple & Noise:

+ Voltage: Ripple 1mVrms / 3mVp-p; Noise 2mVrms / 6mVp-p

+ Current: 3mArms

Temperature Coefficient: 100ppm + 20 mV / 150ppm + 10 mA

Read Back Resolution Accuracy (25±5 ): 0.5% ± 10mV / 0.5% ± 1mA

Response Time:

+ Voltage Up 10~90%: 100mS

+ Voltage Down 90~10%: 100mS

Read Back Temperature Voltage: 100ppm ± 20mV

Coefficient: 150ppm ± 10mA

Drift: 100ppm ± 20mV / 150ppm ± 10mA

Track: Error 0.1% + 50mV

Memory: 1~9 sets

Timer For Working Loop:

+ Step Time: 1 sec ~ 999999 sec

+ Resolution: 1 sec 5V

Fixed Ripple: 2mVrms

Output Voltage Accuracy: 5V ± 0.25V

Output Max Current: 3A ± 0.02A

Power Source: AC 120V, 240V ±5% 50/60Hz
