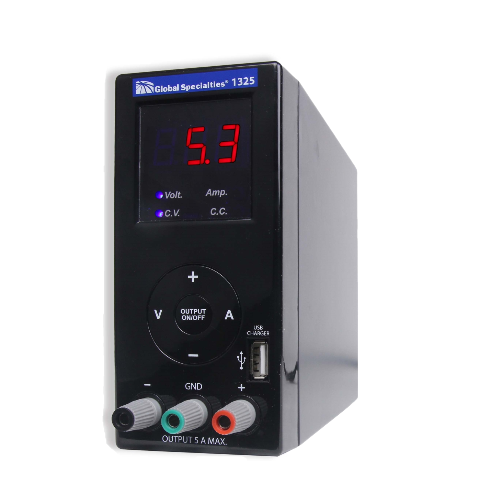

GLOBAL 1325 80W Power Supply with USB Output (16V; 5A)

Output Voltage: 1–16 VDC

Output Current: 0-5 A

Switching Operation Frequency: 80 kHz to 120 kHz

Efficiency at Max Power: ≥82%

Voltmeter and Ampmeter Display: 3 Digit 7-Segments LED

Voltmeter Accuracy: +1% rdg + 3 digits.

Ammeter Accuracy: +1% rdg + 5 digits

Resolution: 0.1V, 0.01A

Line Input: 100-120 VAC (50-60 Hz) ±10%

Full Load Input Current at 110 VAC: 1.8 A

Cooling System: Natural Convection

Load regulation (10%-90%): ±50 mV

Line regulation (min to max): ±20 mV

Ripple (rms): ±20 mV

Noise (peak to peak): ±100 mV

Load regulation (10%-90%): ±30 mA

Line regulation (min to max): ±10 mA

Output Voltage: 5 V (±5%)

Output Current: 1.2 A Max

Operating Temp/Humidity: max RH of 80% at 31°C, decreasing linearly to 50% at 40°C

Weight: 3.0 lbs (1.4 kg)

Dimensions: 2.8 x 6.0 x 7.9 in (70 x 150 x 200 mm)
