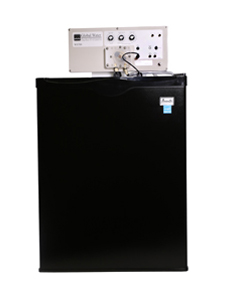

Global Water WS700R-QR Refrigerated Wastewater Samplers (Quick Release Pump)

Operating Temperature: 32° to +158°F (0° to +70°C)

Materials:

Enclosure: Expanded UV protected PVC

Bottle: 2.5 gallon Polyethylene

Pickup Hose: 15 ft reinforced PVC 1/4 inch ID polyethylene flexible tubing section with intake strainer

Pump Tubing: Norprene 1/4 inch ID, 7/16 inch OD

Sample Pump:

Flow Rate: 1000 ml per minute at a 4 foot head

Type: Peristaltic

Maximum Lift: ~20 feet

Power: Internal 12V Rechargable Battery with AC 120 VAC adapter/charger (control panel), 115VAC 60Hz 1.6A 130W (refrigerator)

Standby: 3 months while still retaining enough power to run the pump to capacity

Start Delay: 16 time settings from 0 to 12 hours

Composite Interval: 15 time settings from 5 min. to 12 hours plus an External Trigger mode setting

Sample Size: 15 composite sample sizes from 50 ml to 2 liters plus a Full Bottle discrete setting (Approximate sizes at 4 foot head)

External Trigger Input: 250mS minimum pulse width

Switch closure or 4-24VDC

Pulse Output: 5VDC one-second pulse

1000ohm output impedance

Bottle Switch Input: Switch closure input

Floating switch in bottle

Rain and Water Sensors: Optional moisture sensors or switch closure inputs

Internal Fuse: 10A Slow-Blow

Size of unit: 21x18x21 inch (53.3x45.7x53.3 cm) (HxWxD)

Weight: 37 lb (17 kg)
