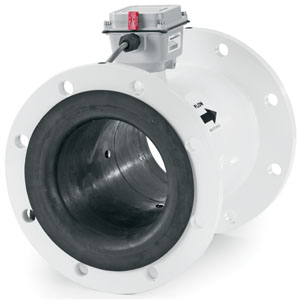

Global Water WMX104-400 Electromagnetic Flow Meters (4", battery)

Pipe Sizes: 4 inch

Flow Range: 12-1000 GPM (0.75-63 L/s)

Accuracy:

±1% of reading from 10% to 100% of max flow

±2% of reading from cutoff to 10% of max flow

Fittings: AWWA 150 lb. drilling

Pressure: 150 PSI (10.3 bar) working pressure

Operating Temperature: 10° to 130° F (-12° to 55° C)

Storage Temperature: -40° to 158° F (-40° to 70° C)

Materials:

Body: Welded steel, epoxy-coated

Liner: Dual durometer rubber

Electronics Housing: Die cast aluminum, powder coated

Electrodes: 316 stainless steel

Rate Display: 5-digits in units of GPM (standard), MGD, Liters/minute, Liter/second, CFM, CMH, Mega Liter/day

Totalizer Display: 8-digits in units of Gallons, Gallons x 1000, Liter, Liter x 1000, Mega Liter, CU Feet, CU Feet x 1000, CU Meters, CU Meter x 1000

Power: 2 Lithium 3.6V "D" batteries, replaceable, 1 year life under continuous use operation during power failures

Output Signal: Pulse output available only with addition of DC30 output cable

Pulse Rates: High Frequency (default); 10 units/pulse; 100 units/pulse; 1000 units/pulse

High Frequency Pulse: 16.362 Pulse/Gal (4.323 Pulse/Liter)
