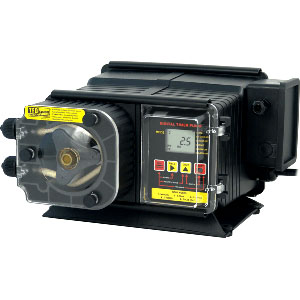

Global Water A1N11E-7T Digital Chemical Metering Pump (220V,138 mL/Min,1.11 cm,0.68 A)

Max. working pressure: 100 psig (6.9 bar)

Max. fluid temperature: 130° F (54° C)

Max. ambient temperature: 14 to 110° F (-10 to 43° C)

Output adjustment range: Adjustable 0.1 to 99 seconds

Duty cycle: Continuous

Maximum viscosity: 5,000 Centipoise

Maximum suction lift: 30 ft. Water 0 psig

Maximum Solids: 50% by volume

Enclosure: NEMA type 3R, (IP23)

Dimensions: 6-1/8 x 10-1/8 x 9 inch (15.6 x 25.7 x 22.9cm)

Approximate shipping wt: 10 lb. (4.5 kg)

Maximum liquid output at zero backpressure: 138 mL/Min

Maximum pressure output: 3.45 bar

Tube OD: 1.11 cm

Max Motor RPM: 30 RPM

Max Amp: 0.68 A

Brochure

Manual
