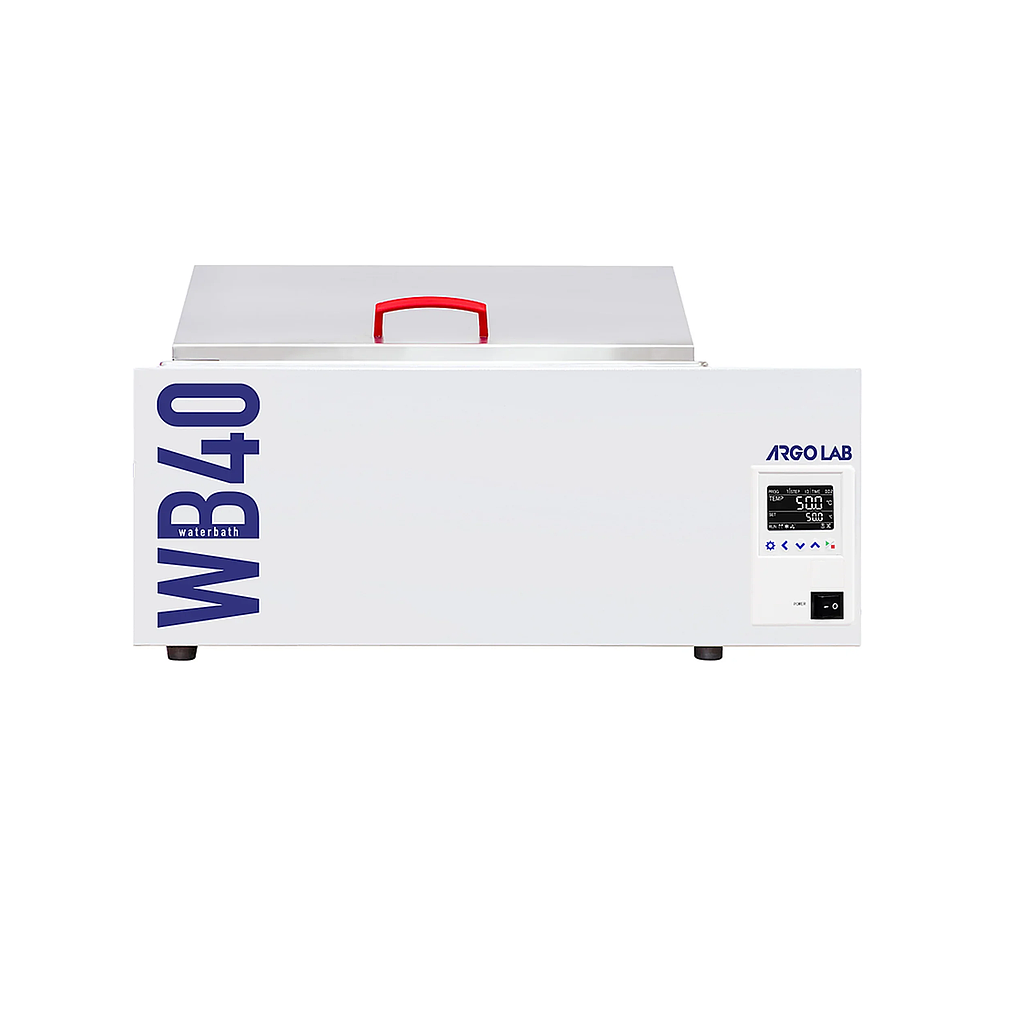

Giorgio Bormac WB 40 Pump Waterbath (40L; with pump)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN6101G-1:2010 - EN61010-2-010:2003

Performance

Temperature Range: +5 Ta ... 85 °C

Capacity: 40 L

Minimum overall height with lid fully closed: 150 mm

Temperature Resolution: 0.1 °C

Temperature fluctuation at 37 °C: ±0.2 °C

Temperature variation in space at 37 °C: ±0.5 °C

Volume: 40 L

Display: LCD

Timer: 99:59 hh:mm

Security Class (DIN 12880): 2

Circulation Type: Forced circulation

Pump: Yes

Maximum Pump Flow Rate [l/min]: 12 l/min

Power: 2200 W

Inner Tank Depth: 200 mm

Overtemperature Safety System: Electronic

Discharge valve: Yes

Rack capacity: 16 slot

Feeds

Frequency: 50 - 60 Hz

Power Supply: 230 V

Dimensions and weight

Weight: 28 kg

External dimension (W x D x H): 830 x 460 x 390 mm

Packaging dimension (W x D x H): 800 x 120 x 650 mm

Internal Tank dimension (W x D x H): 645 x 395 x 200 mm

Bottom Plate Dimensions: 620 x 380 mm
