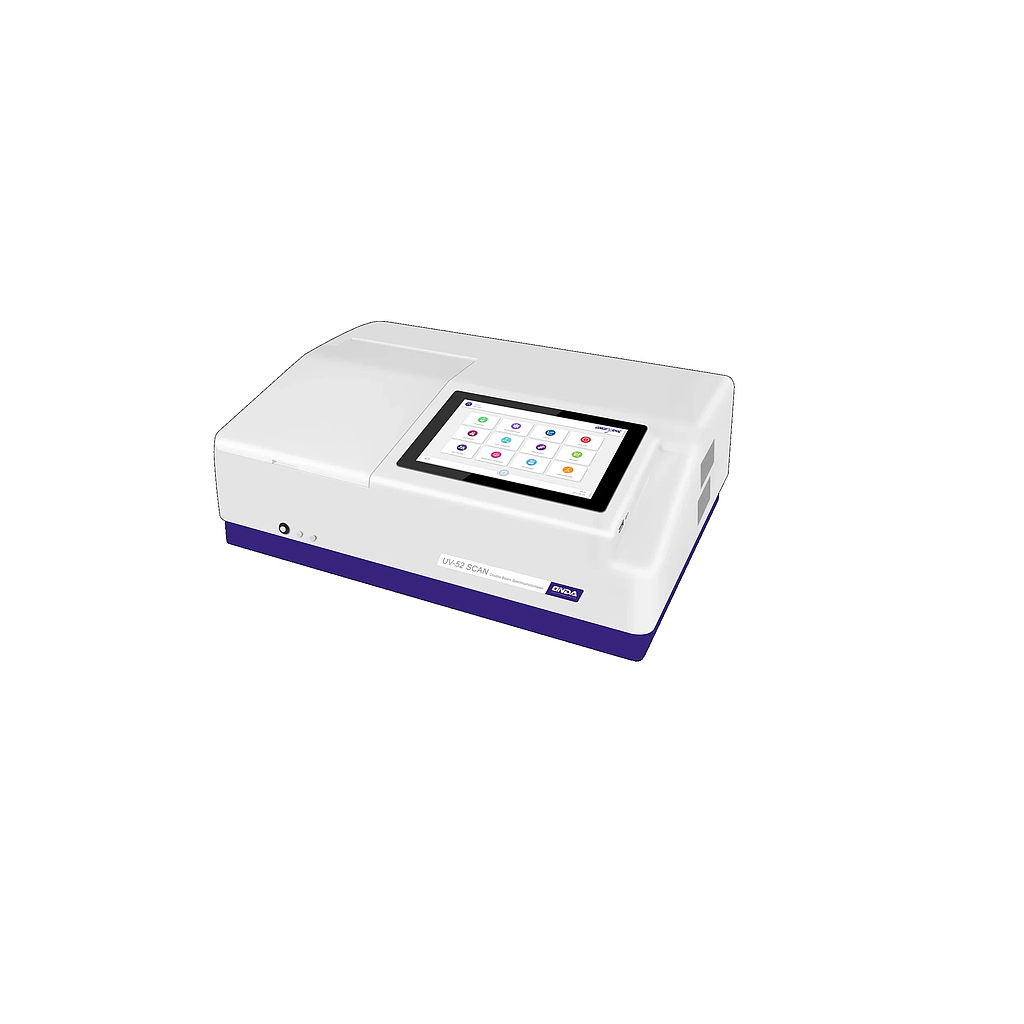

Giorgio Bormac UV-52 UV-VISIBLE spectrophotometer

Performance

Accuracy (photometric):

±0.002 Abs (0.0 - 0.5 Abs)

±0.004 Abs (0.5 - 1.0 Abs)

±0.3 %T (0.0 - 100.0 %T)

Accuracy (wavelength): ±0.3

Bandwidth: 0.5 - 1 - 2 - 4 - 5 nm, selectable

Difused light: ≤0.03 %T @ 220 and 360 nm

Photometric range: 0 - 400 %T

Abs photometric range: -4.0 - +4.0 Abs

Photometric range conc: 0 - 9999.9 Conc

Wavelength range: 190 - 1100 nm

Measuring range (UV/Visible): 190 - 1100 nm

Photometric resolution: 0.001

Wavelength resolution: 0.1 nm

Stability: ±0.002 Abs/hr (500 nm after 2 hours warm-up)

Features

Connection: USB-A / USB-B / RS-232 / Ethernet

Display: Colour LCD màn hình touch screen 10.1'', 1280 x 1280

Basic photometry: Yes

File Management: Yes

Communication interfaces: Touch screen

Language: IT - EN - CHN - ESP - DEU - FRA - POR - RUS

Memory: 64 GB (internal) expandable with USB stick and SD card

Quantitative: Yes

Detector: Silicon photodiodes

Spectral scanning: Yes

Optical system: Double beam

Sources: Tungsten-halogen / Deuterium

Standard cell support: Fixed 1 position, 10 mm path length

System Utilities: Yes

Sample compartment: Accessible from above and the front

Performance verification: Yes

Feeds

Power supply: 100 - 240

Power: 140

Dimensions and weight

Dimensions (W x D x H): 456 x 420 x 235

Weight: 18.0
