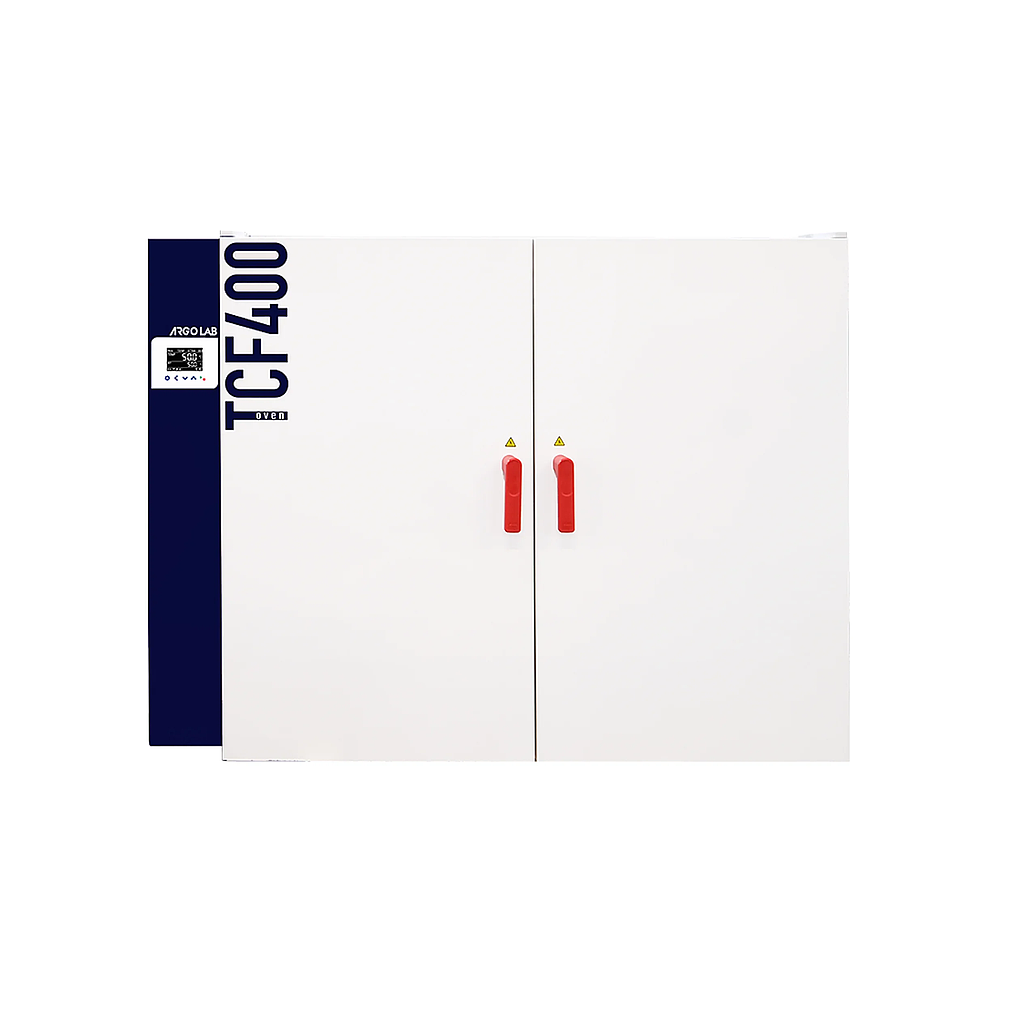

Giorgio Bormac TCF 400 PLUS Forced air oven (400L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN61010-1:2010 - EN61010-2-010:2003

Performance

Capacity: 400 L

Temperature variation in space at 150°C: ±3 °C

Working temperature: +10 Ta … 300 °C

Heating time at 150°C: 50 m

Temperature fluctuation at 150°C: ±0.5 °C

Features

Maximum shelf load: 20 kg

Security class (DIN 12880): 3.1

Overtemperature safety system: Electronic and electromechanical

Number of shelves: 3

Max number of shelves: 10

Programs: 8 programs with up to 8 steps each, 1 single-step program, and 1 multi-step program with up to 64 steps

Internal Data Logger: Yes

Data Export: Yes, via USB stick

Maximum internal recording capacity: 2167

Display: LCD

Graph display: No

Operation History: No

Alarm History: No

Ramp function: No

Multi-User Function: No

Door Switch: Yes

Timer: 99 : 59 hh:mm

Heating type: Forced ventilation

Ventilation: 3 speeds (50 %, 75 %, 100 %)

Useful volume: 400 L

Feeds

Power supply: 230 V

Frequency: 50 - 60 Hz

Absorbed power: 3200 W

Dimensions and weight

Dimensions (WxDxH): 1285 x 820 x 1060 mm

Internal dimensions (WxDxH): 1000 x 500 x 800 mm

Minimum distance between shelves: 50 mm

Weight: 160 kg
