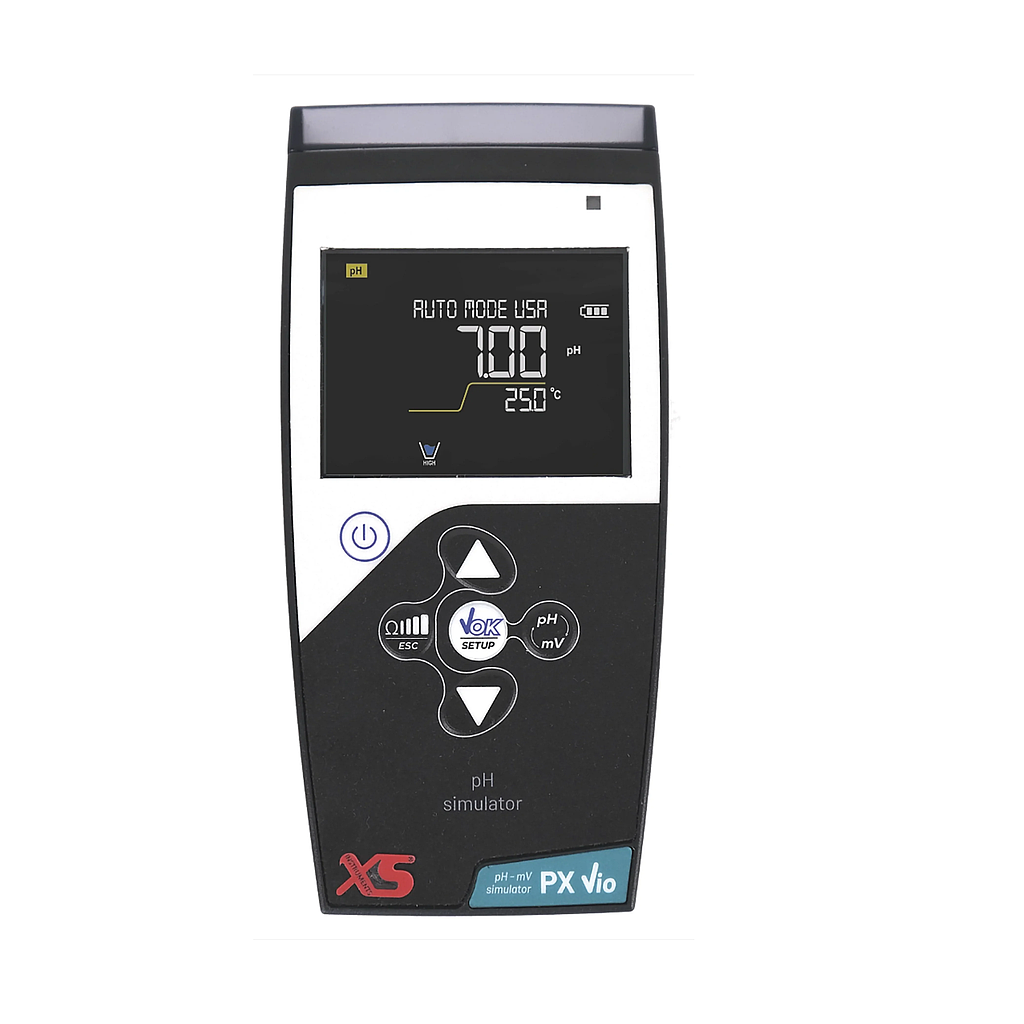

Giorgio Bormac PX Vio pH/mV/ORP Simulator

Supplied as standard:

1 meter BNC/BNC cable

Coloured pH buffer solutions

Operating instructions

Test report

Carrying case

Performance:

Accuracy pH: ±0.02 pH

Accuracy mV: 1 mV

Temperature compensation range: Yes, according to Nerst, 0 ... +100 °C

Temperature unit: °C / °F

Measuring range mV: -1999 ... +1999 mV

pH measuring range: -2.00 ... 16.00 pH

pH automatic simulated values: USA 1.68 / 4.01 / 7.00 / 10.01 / 12.45 - NIST 1.68 / 6.86 / 9.18 / 12.46

Custom pH values: 5

pH resolution: 0.01 pH

mV resolution: 1 mV

mV automatic simulated values: mV 1900 / 900 / 177 / 0 / -177 / -900 / -1900 - ORP 200 / 250 / 468 / 475 / 650

Custom mV values: 5

Working temperature: 0 ... +60 °C

Features:

Display: High-definition LCD, backlit

Brightness and contrast: Adjustable

IP rating: IP57

Sleep mode: Yes, 2 or 5 minutes (can be deactivated)

Inputs: 1 BNC

Impedance output: High 1 GΩ - Low < 100 kΩ

High/Low impedance: Yes

Auto off: 20 minutes (can be deactivated)

Regulations:

CE

Feeds:

Power supply: 4 x AA 1.5 V batteries

Dimensions and weight:

Dimensions (W x D x H): 185 x 85 x 45 mm

Weight: 0.4 kg

Datasheet
