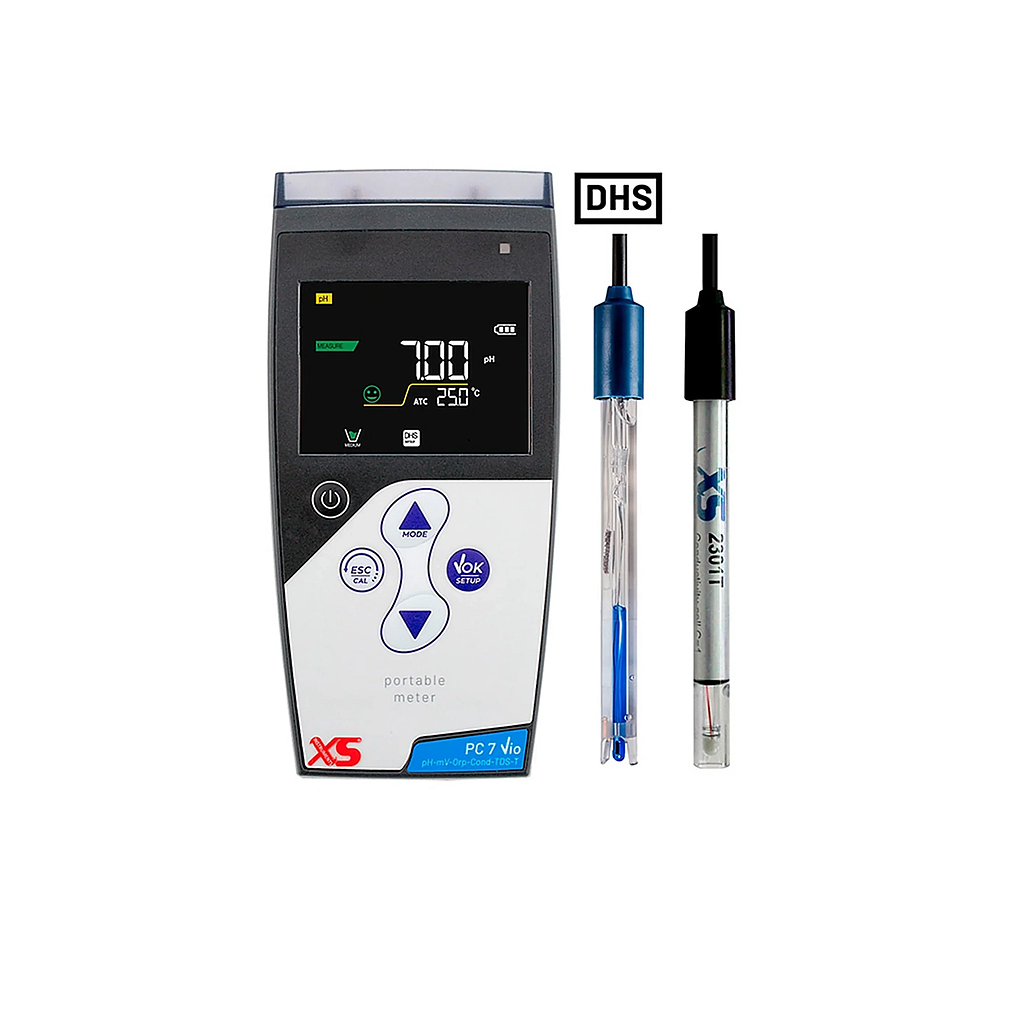

Giorgio Bormac PC 7 Vio Portable multiparameter - Electrode 201 T DHS - Cell 2301 T

Supplied as standard: 3-hole field stand for electrodes, coloured buffer solutions, operating instructions and carrying case.

Standards applied:

Regulations: CE

Performance:

Accuracy (COND): ±2 % f.s.

Accuracy (pH): ±0.02

Temperature accuracy: ±0.5 °C

Temperature coefficient: 0.00 ... 10.00 % / °C

Temperature compensation: 0.0 ... 80.0 % / °C

TDS factor: 0.40 ... 1.00

Measuring range (COND): 0.00 μS ... 200 mS

mV ORP measuring range: -1000 ... +1900

pH measuring range: 0 ... +14.00

TDS measuring range: 0.1 mg/l ... 200 g/l

Temperature measurement range: 0.0 ... +100.0 °C

COND resolution: 0.01 / 0.1 / 1 (automatic scale) μS/cm

ORP resolution: 1

pH resolution: 0.01

Temperature resolution: 0.1 °C

Working temperature: 0 ... +45 °C

Reference temperature: +15 ... +30 °C

Features:

DHS compatibility: Yes

Automatic brightness control: Yes

Display: 0.1 / 1 / 10

Criteria for stability of the measure: Low - Med - High (pH)

Display: High-definition, backlit colour LCD

IP rating: IP57

Inputs: BNC - RCA

Calibration points (Cond): 1 ... 4

ORP calibration points: 1

pH calibration points: 1 ... 3 automatic values - 2 user values

Swabs recognised (Cond): 84 µS - 147 µS - 1413 µS - 12.88 mS - 111.8 mS - 1 user value

Recognised pH buffers: USA - NIST

Feeds:

Power supply: 3 × AA batteries 1.5 V

Dimensions and weight:

Dimensions (W×D×H): 185 × 85 × 45 mm

Weight: 0.4 kg
