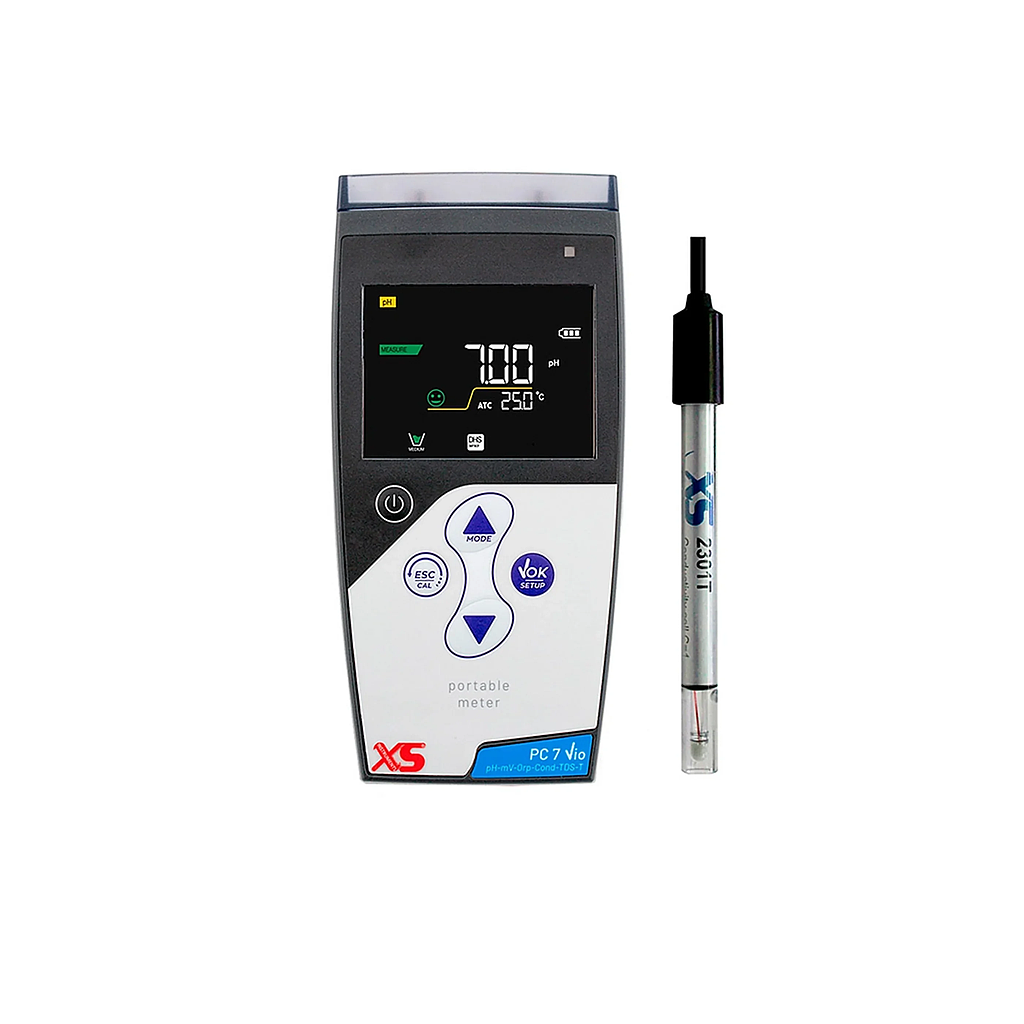

Giorgio Bormac PC 7 Vio Portable multiparameter - Cell 2301 T - Without electrode

Supplied as standard:

3-hole field stand for electrodes

Coloured buffer solutions

Operating instructions

Carrying case

Standards applied:

Regulations CE

Performance:

Accuracy COND: ±2 % f.s.

Accuracy pH: ±0.02

Temperature accuracy: ±0.5 °C

Temperature coefficient: 0.00 ... 10.00 %/°C

Temperature compensation: 0.0 ... 80.0 %/°C

TDS factor: 0.40 ... 1.00

Measuring range COND: 0.00 μS ... 200 mS

ORP measuring range: -1000 ... +1900 mV

pH measuring range: 0 ... 14.00

TDS measuring range: 0.1 mg/l ... 200 g/l

Temperature measurement range: 0.0 ... +100.0 °C

COND resolution: 0.01 / 0.1 / 1 μS/cm

ORP resolution: 1

pH resolution: 0.01

Temperature resolution: 0.1 °C

Working temperature: 0 ... +45 °C

Reference temperature: +15 ... +30 °C

Features:

DHS compatibility: Yes

Automatic brightness control: Yes

Display: 0.1 / 1 / 10

Criteria for stability of the measure (pH): Low - Med - High

Display type: High-definition backlit colour LCD

IP rating: 57

Inputs: BNC - RCA

Calibration points COND: 1 ... 4

Calibration points ORP: 1

Calibration points pH: 1 ... 3 automatic values, 2 user values

Recognised COND standards: 84 μS - 147 μS - 1413 μS - 12.88 mS - 111.8 mS - 1 user value

Recognised pH buffers: USA - NIST

Feeds:

Power supply: 3 x AA batteries 1.5 V

Dimensions and weight:

Dimensions (W x D x H): 185 x 85 x 45 mm

Weight: 0.4 kg

Datasheet
