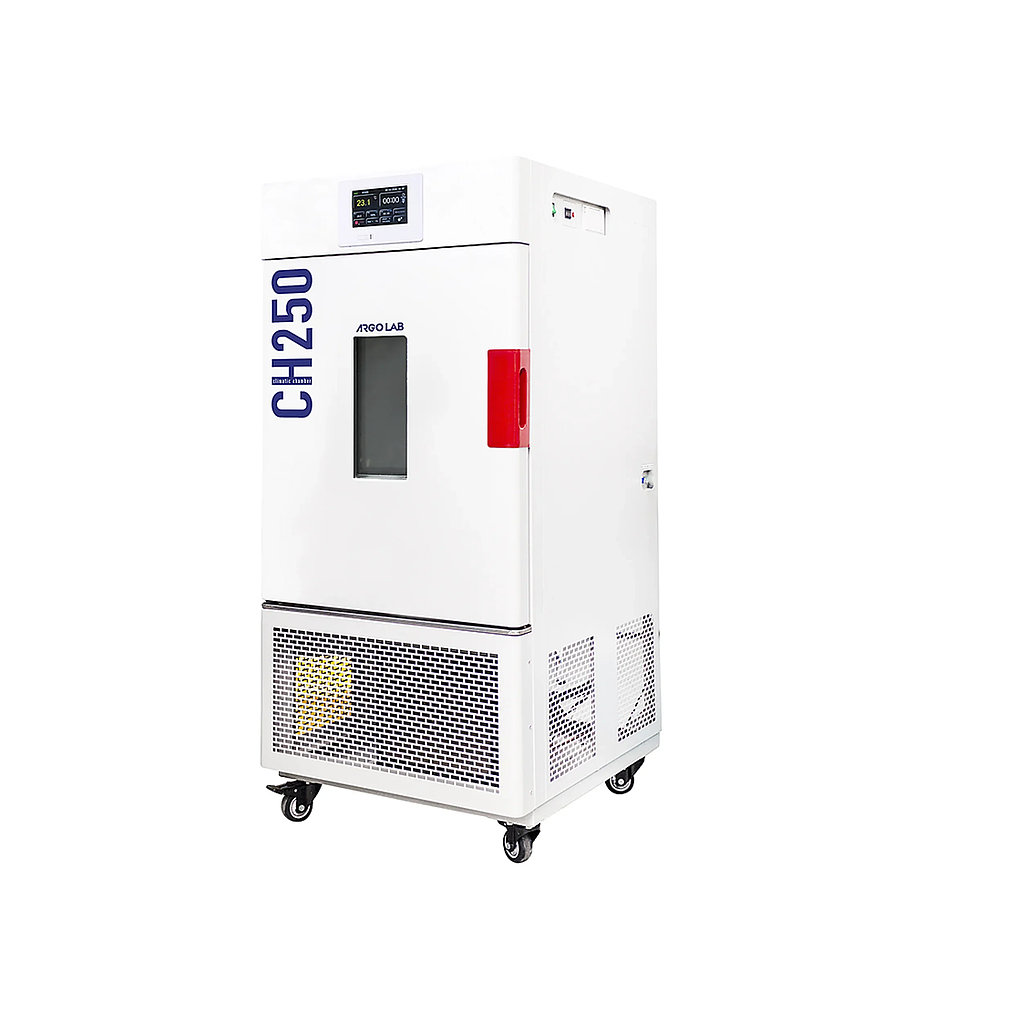

Giorgio Bormac CH 250 Climatic Testing Chamber (250L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN61010-1:2010

Performance (In accordance with IEC 60068-3-6)

Capacity: 250 L

Setting range humidity: 45% … 95% RH

Setting temperature range: +10...+70 °C (with humidity) / 0...+85 °C (without humidity)

Relative humidity fluctuation: ±3% (15…65°C / 50...95% RH)

Temperature fluctuation* with humidity: ±0.5 °C (+15...+65 °C / 50...90 %RH)

Relative humidity fluctuation* at 25°C / 50% RH: ±0.5 % RH

Relative humidity gradient* at 25°C / 50% RH: 3 % RH

Relative humidity variation in space* at 25°C / 50% RH: 3 % RH

Temperature fluctuation* with humidity at 25°C / 50% RH: ±0.1 °C

Temperature gradient* with humidity at 25°C / 50% RH: 0.5 °C

Temperature variation in space* with humidity at 25°C / 50% RH: 0.5 °C

Resolution: 0.01 °C / 0.1% RH

Features

Security class (DIN 12880): 3.1

Maximum shelf load: 10 kg

Number of shelves: 3

Max number of shelves: 12

Programs: 120 customisable programmes with ramps

Working method: Forced ventilation

Timer: 99:59 and Fixed

Data transfer: Yes, via USB stick

Display: 7" touchscreen

Multi-user: Yes

Internal DataLogger: Yes

Graph: Yes

Useful volume: 250 L

Coolant type: R1234ZE

Coolant quantity: 800 g

Feeds

Power supply: 220 ±10% V

Frequency: 50/60 Hz

Absorbed power: 2200 W

Dimensions and weight

Dimensions (WxDxH): 740 x 885 x 1680 mm

Internal dimensions (WxDxH): 600 x 500 x 830 mm

External tank dimensions: 200 x 370 x 450 mm

Minimum distance between shelves: 45 mm

Weight: 185 kg

Datasheet
