GIGAHERTZ SOLUTIONS HFE35C RF Analyser Kit (27 MHz - 2.7 GHz)

Item weight: 1.16 kg

Frequency range: 27 MHz - 2.7 GHz

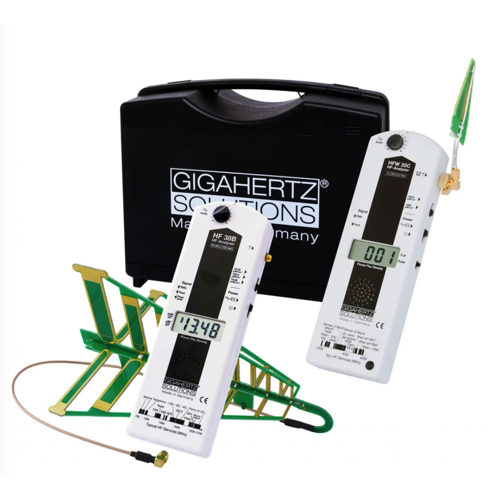

Scope of delivery:

Measuring device

Plug-on LogPer and UBB antenna

Alkaline manganese battery

Detailed operating manual with neutral background information

Plastic case

Measurement range: Power flux density: 0.1 - 1999 µW/m²

Precision:

Basic accuracy (CW) including linearity error: +/- 6 dB

Zero point deviation and special digitizing error ("rollover"): +/- 9 digits

Sensor:

Log-periodic measurement antenna with frequency response compensated directly on the antenna

Quasiisotropic ultra-broadband antenna ("omni-antenna") adjusted for vertically polarized fields

Audio analysis:

Modulation frequency and field strength proportional audio signal supports identification of pulsed radiation sources (GSM, DECT, etc.) and detection of elevated exposures.

Signal rating: Peak and average value display

Power supply:

9-volt E-block alkaline manganese battery (included), average operating time: 4 - 7 hours (depending on operating mode)

Low-batt. indicator

Auto power-off function

Manual
