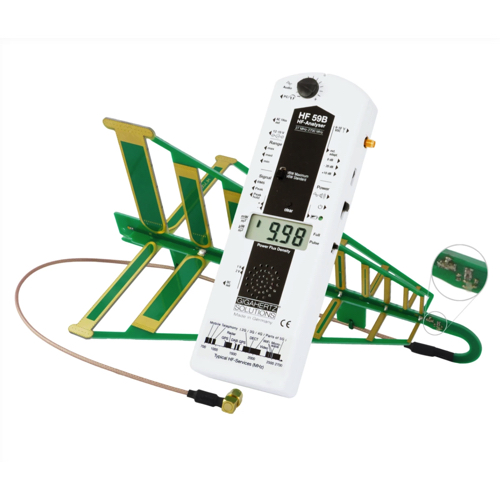

GIGAHERTZ SOLUTIONS HF59B RF Analyzer (700 MHz - 2.7 GHz)

Item weight: 1.65 kg

Frequency range: 700 MHz - 2.7 GHz (3.3 GHz with increased tolerance). Supplied with LogPer antenna from 700 MHz. Internally "open" - down to 27 MHz, prepared for connection of UBB27).

Scope of delivery:

Measuring device

Plug-on LogPer antenna with antenna cable

Internal NiMH battery

Power supply/charger

Detailed user manual

Plastic case

Measurement range: Power flux density: 0.01 - 19,990 µW/m²

Precision:

Basic accuracy (CW) including linearity error: +/- 3 dB

Zero point deviation and special digitizing error ("rollover"): +/- 5 digits

Sensor:

Optimized log-per. measurement antenna with frequency response compensated directly on the antenna. Lower ripple, lower DF deviation, improved downward shielding, continuous function monitoring with LEDs.

Audio analysis:

Modulation frequency and field strength proportional audio signal supports identification of pulsed radiation sources (GSM, DECT, etc.) and detection of elevated exposures.

Signal rating:

Peak & average display and peak hold

Quantitative differentiation of pulsed and unpulsed radiation (patented circuit)

Signal output ports: AC (demodulated signal, calibrated) and DC output

Power supply:

9.6-volt NiMH high-performance battery pack (included), average operating time: 7 - 8 hours

Low-battery indicator

Auto power-off function (deactivated for long-term measurements)

Mains/charger unit (included)

Manual
