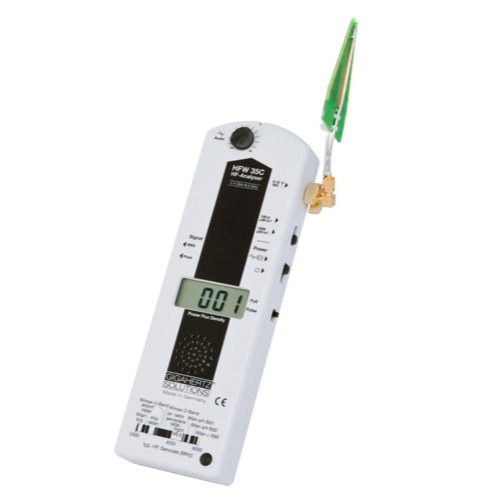

GIGAHERTZ SOLUTIONS HF35C RF Analyzer (800 MHz - 2.7 GHz)

Item weight: 0.45 kg

Frequency range: 800 MHz - 2.7 GHz

Scope of delivery:

Measuring device

Plug-on LogPer antenna with antenna cable

Alkaline manganese battery

Detailed operating instructions with neutral background information

Measurement range: Power flux density: 0.1 - 1999 µW/m²

Precision:

Basic accuracy (CW) including linearity error: +/- 6 dB

Zero point deviation and special digitizing error ("rollover"): +/- 9 digits

Sensor: Logarithmic-periodic measuring antenna

Audio analysis:

Modulation frequency and field strength proportional audio signal supports identification of pulsed radiation sources (GSM, DECT, etc.) and detection of elevated exposures.

Signal rating: Peak and average value display

Power supply:

9-volt E-block alkaline manganese battery (included), average operating time: 6 - 7 hours (depending on operating mode)

Low-Batt. indicator

Auto power-off function

Manual
