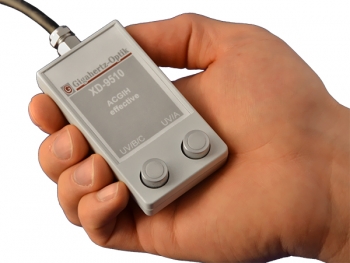

Gigahertz-Optik XD-9510-4 UV Hazard Risk Assessment (10 mW/m2 ~ 10 kW/m2, 3 µW/m2 ~ 250 W/m2)

Measurement range:

UV-BC: 10 mW/m² to 10 kW/m²

UV-A: 3 µW/m² to 250 W/m²

Typical applications: Detector for the check of hazard caused by UV radiation emitted by machinery.

Calibration: Calibration of the actinic responsivity of each detector channel. Calibration of the relative spectral responsivity of each of the detector head cells.

Spectral responsivity:

Ch 1: Suv(λ) UV-A (320 - 400) nm

Ch 2: Suv(λ) UV-BC (250 - 320) nm

Typical responsivity:

UV-BC: 1.5 nA/(W/m²)

UV-A: 4 µA/(W/m²)

Max. signal current:

UV-BC: 50 µA

UV-A: 1 mA

Input optics: 8 mm Ø Diffuser

Measurement ranges:

XD-9510-CH1

min (0.1 pA NEI): 2.50E-08 W/m²

max (200 µA): 5.00E+01 W/m²

max (1 mA): 2.50E+02 W/m²

XD-9510-CH2

min (0.1 pA NEI): 6.67E-05 W/m²

max (50 µA): 3.33E+04 W/m²

Temperature range: 5 - 40°C

Cable Length: 2m
