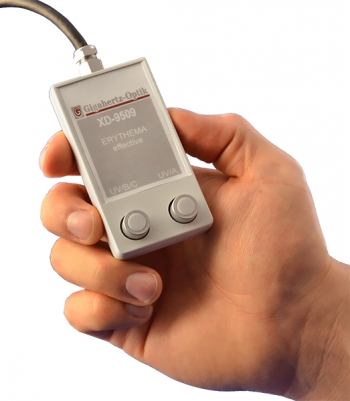

Gigahertz-Optik XD-9509-4 Detector head for use in UV radiation (ITT connector, 2.50E-08 W/m², 6.67E-05 W/m²)

Spectral responsivity:

CH1: Erythema UV-Aeff (320 - 400) nm

CH2: Erythema UV-BCeff (250 - 320) nm

Typical responsivity:

CH1: UV-A: 1 µA/(W/m²)

CH2: UV-BC: 3.8 nA/(W/m²)

Max. signal current:

CH1: UV-A: 100 µA

CH2: UV-BC: 50 µA

Input optics: 8 mm Ø Diffuser

Measurement ranges:

XD-9509-CH1

min (0.1 pA NEI): 2.50E-08 W/m²

max (100 µA): 2.50E+02 W/m²

XD-9509-CH2

min (0.1 pA NEI): 6.67E-05 W/m²

max (50 µA): 3.33E+04 W/m²

Temperature range: 5 - 40°C

Cable Length: 2m
