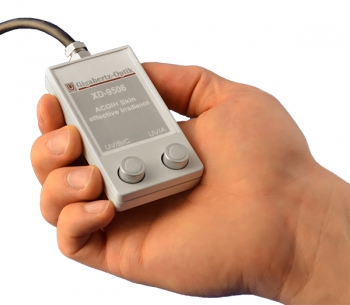

Gigahertz-Optik XD-9506-4 Detector Head for use in UV Photo-biological (ITT connector)

Spectral responsivity:

CH1: Actinic UV-A (320 - 400) nm

CH2: Actinic UV-BC (250 - 320) nm

Typical responsivity:

CH1: UV-A: 4 µA/(W/m²)

CH2: UV-BC: 1.5 nA/(W/m²)

Max. signal current:

CH1: UV-A: 1 mA

CH2: UV-BC: 50 µA

Input optics: 8 mm Ø Diffuser

Measurement ranges:

XD-9506-CH1

min (0.1 pA NEI): 2.50E-08 W/m²

max (200 µA): 5.00E+01 W/m²

max (1 mA): 2.50E+02 W/m²

XD-9506-CH2

min (0.1 pA NEI): 6.67E-05 W/m²

max (50 µA): 3.33E+04 W/m²

Temperature range: 5 - 40°C

Cable Length: 2m
