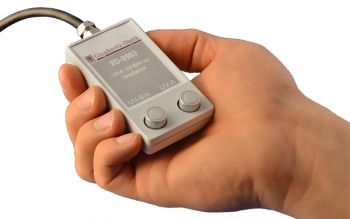

Gigahertz-Optik XD-9503 UV-A and UV-B Detector Head for use in Phototherapy (1.43E-05 W/m², 1.11E-05 W/m²)

Spectral responsivity:

CH1: UV-A Peak 380 nm: (315 - 400) nm

CH2: UV-B Peak 311 nm: (280 - 315) nm

Typical responsivity:

CH1: 7 nA/(W/m²)

CH2: 9 nA/(W/m²)

Max. signal current:

CH1: 100 µA

CH2: 50 µA

Input optics: 8 mm Ø Diffuser

Measurement ranges:

XD-9503-CH1

min (0.1 pA NEI): 1.43E-05 W/m²

max (100 µA): 1.43E+04 W/m²

XD-9503-CH2

min (0.1 pA NEI): 1.11E-05 W/m²

max (50 µA): 5.56E+03 W/m²

Temperature range: 5 - 40°C

Cable Length: 2m

Plug Types: -4
