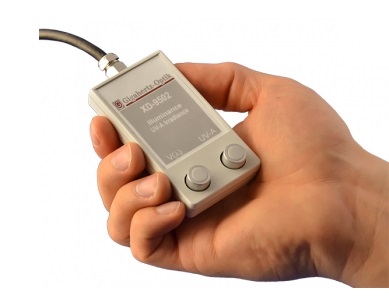

Gigahertz-Optik XD-9502 Photostability Light & UV Meter (1.67E-05 W/m², 2.00E-03 lx)

Spectral responsivity:

CH1: UV-A (315 - 400) nm

CH2: Photopic; f1 ≤ 6% (380 - 780) nm

Input optics: 8 mm Ø Diffuser

Max. signal current:

CH1: 100 µA

CH2: 1 mA

Typical responsivity:

CH1: radiometric: 10 nA/(W/m²)

CH2: photometric: 50 pA/lx

Measurement ranges:

XD-9502-CH1

min (0.1 pA NEI): 1.67E-05 W/m²

max (100 µA): 1.67E+04 W/m²

XD-9502-CH2

min (0.1 pA NEI): 2.00E-03 lx

max (50 µA): 4.00E+06 lx

max (1 mA): 2.00E+07 lx

Temperature range: 5 - 40°C

Cable Length: 2m

Datasheet
