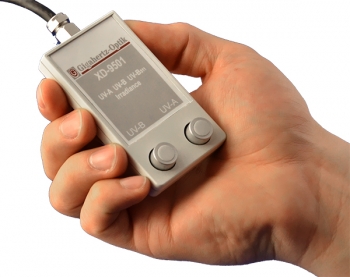

Gigahertz-Optik XD-9501-4 UV-A and UV-B detector head (5.88E-06 W/m², 4.00E-05 W/m²)

Spectral responsivity:

CH1: UV-A 315 nm - 400 nm

CH2: UV-B 280 nm - 315 nm

Typical responsivity:

CH1: 17 nA/(W/m²)

CH2: 2.5 nA/(W/m²)

Max. signal current:

CH1: 100 µA

CH2: 50 µA

Input optics: 8 mm Ø Diffuser

Measurement ranges:

XD-9501-CH1

min (0.1 pA NEI): 5.88E-06 W/m²

max (100 µA): 5.88E+03 W/m²

XD-9501-CH2

min (0.1 pA NEI): 4.00E-05 W/m²

max (50 µA): 2.00E+04 W/m²

Temperature range: 5 - 40°C

Cable Length: 2m

Plug Types: -4
