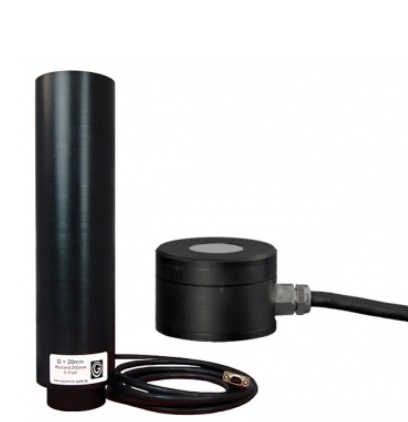

Gigahertz-Optik XD-45-HB-4 Detector for Blue-Light Hazard Measurements (0.2 lx ~ 1,000,000 lx)

-Field of View: 20 mm diameter diffuser, 11 mrad and 100 mrad with front adapter XD-45-HB-SRT200

-Measurement range: B(λ) (Σ of all 3 cells): effective irradiance 0.02 mW/m² to 100 W/m² (max. resolution 2 µW/m²)

-Spectral irradiance responsivity range:

B(λ) (300 - 400) nm: effective irradiance 2 µW/m² to 100 W/m² (max. resolution 0.2 µW/m²)

B(λ) (400 - 600) nm: effective irradiance 20 µW/m² to 1000 W/m² (max. resolution 2 µW/m²)

B(λ) (600 - 700) nm: effective irradiance 0.05 µW/m² to 2 W/m² (max. resolution 0.005 µW/m²)

-Illuminance measurement range (integral measurement)

V(λ): Illuminance 0.2 lx to 1,000,000 lx (max. resolution 0,02 lx)

-Dimensions: 45mm diameter, 30mm high

-Weight: 200g

-Connection cable: cable length 2 m, with ITT (-4) connector for the usage with X1-3
