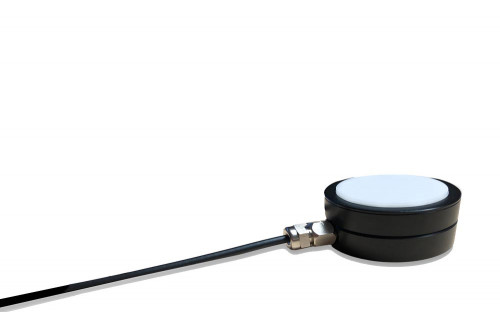

Gigahertz-Optik VL-3707-2 V(lambda) Detector (Calibration data connector)

Typical responsivity: 12 nA/lx

f1' (spectral mismatch): f1' ≤ 3% (CIE: Class 3*, DIN EN 13032-1: Class A)

f2 (directional response/cosine error): f2 ≤ 6% (CIE: Class 1*, DIN EN 13032-1: Class C)

f6 (temperature):

+ DIN EN 13032-1: Class L ≤ 0.15%

+ CIE: Class 4*: ≤ 0.75%

Max. signal current: 1 mA

Input optics: Diffuser window 30 mm Ø

min. signal current: depends on optometer

Measurement ranges: Recommended measuring range in combination with Optometer P-9710 <100 μlx to> 80,000 lx

Rise time: 33 µs

Illuminance measurement range (integral measurement):

+ 83000 lx: 1 mA

+ 16000 lx: 200 µA

- Miscellaneous:

Temperature range: 5 - 40°C

Connector: coaxial cable 2m Long, with calibration data connector (VL-3707-2)

Dimensions:

+ Diameter: 37 mm (+Connector)

+ Height: 21 mm
