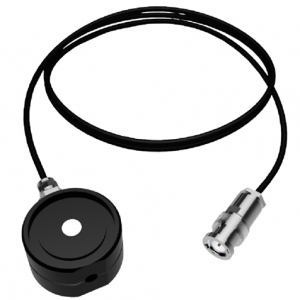

Gigahertz-Optik VL-3704-2 V(lambda) Detector (Calibration data connector)

-Spectral responsivity: photometric V(λ)

- f1' (spectral mismatch): f1' ≤ 5%

- Typical responsivity: 20 pA/lx

- Max. signal current: 1 mA

- Input optics: Diffuser window 7mmØ

- f2 (directional response/cosine error): f2 ≤ 3%

- Connector: coaxial cable 2m Long with calibration data connector (VL-3704-2)

- Temperature range: 5 - 40°C

- Min. signal current: depends on optometer

- Rise time: 18 ns

- Measurement range:

Sensor:

min (0.1 pA NEI): 5.00E-03 lx

max (200 µA): 1.00E+07 lx

max (1 mA): 5.00E+07 lx

Options

Accessories: WQ: Optional waterproof retrofitting of the VL-3704 detector using quartz dome and o-ring reinforcement of the base plate.
