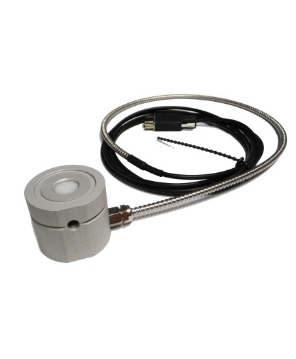

Gigahertz-Optik UV-3726-4 High Sensitivity Broadband UV Irradiance Detector (ITT connector)
ManufacturerGigahertz-Optik(View more products from this manufacturer)
ModelUV-3726-4
P/N15311665
OriginGermany
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Spectral responsivity: UV 240 nm - 320 nm
Typical responsivity: 50 µA/(W/cm²)
Max. signal current: 50 µA
Input optics: 11 mm Ø diffusor window
Input optics: Cosine F.O.V.
Housing: 37 mm Ø, 32 mm height
Mounting: side M6 thread hole
Connector: coaxial cable 2 m Long, with ITT connector (UV-3726-4)
Temperature range: 5 - 40°C
+ temperature coefficient: -0.134 %/°C
(*determined with 254 nm lamp)
min. signal current: depends on optometer
