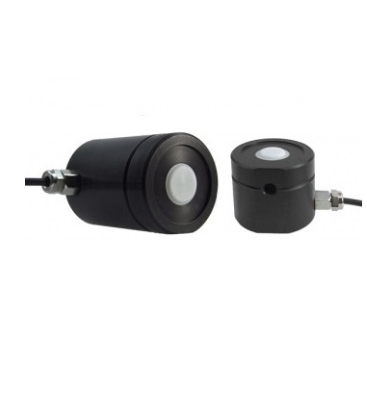

Gigahertz-Optik UV-3717-2 High Sensitivity Broadband UV Irradiance Detector (Calibration data connector)
ManufacturerGigahertz-Optik(View more products from this manufacturer)
ModelUV-3717-2
P/N15297125
OriginGermany
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Spectral responsivity: UV-A 325-400 nm
Typical responsivity: 1 nA/(W/m²)
Max. signal current: 100 µA
Input optics: 11 mm Ø diffusor window
Input optics: Cosine F.O.V
Housing: 37 mm Ø, 32 mm height
Mounting: side M6 thread hole
Connector: coaxial cable 2 m Long, with calibration data connector (UV-3717-2)
Temperature range: 5 - 40°C
min. signal current: depends on optometer
