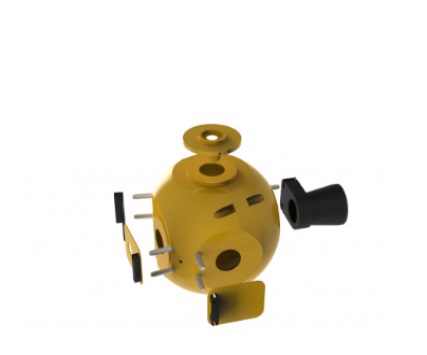

Gigahertz-Optik UPG-150-ART Gold Coated Integrating Sphere (150 mm, ± 0.1 °)

-Measurement range:

Diameter: 150 mm (6 inch)

Coating: ODG95 pure gold

Application ports: five, 30 mm diameter with knife edge, post for Slide&Fix accessory

Detectorport: exhange able Adapters with baffle-Typical applications: Spectrophotometer. Other transmission and reflection measurement set-ups.

-Sphere diameter: 150 mm

-Coating: ODG95 pure gold

-Measurement Port Diameter: 30 mm

-Knife edge thickness: 0.5 mm (knife edge design)

-Number of measurement ports: Five

-Angle tolerance of port setup: ±0.1°

-Accessories: Every two removable posts of the Slide & Fix System

-Detector port: 30 mm with circumferential frame (Ø = 58 mm) with lateral V-notch

-Mounting: Flat base with four M5 threaded holes within a 50 mm pitch circle

-Weight: approx. 1.1kg
