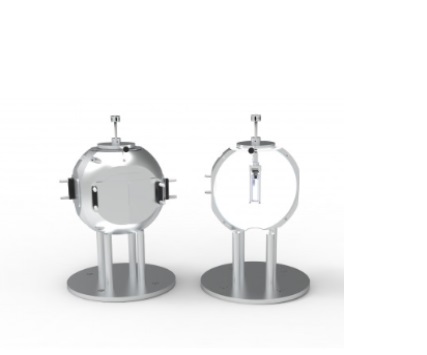

Gigahertz-Optik UPB-150-ARTA Integrating Sphere (150 mm, ± 0.1 °)

-Measurement range:

Diameter: 150 mm (6 inch)

Coating: Barium sulfate. Spectral range 300 nm to 2500 nm

Application ports: five, 30 mm diameter with knife edge, post for Slide&Fix accessory

Detectorport: exhange able Adapters with baffle

Absorption sample holder: Turnable. Adapter for 10 mm x 10 mm cuevett. Clamp for sheet samples

-Typical applications: Spectrophotometer. Other transmission and reflection measurement set-ups.

-Sphere diameter: 150 mm

-Coating: ODP97 (based on Barium Sulfate)

-Measurement Port Diameter: 30 mm, with knife edge design

-Knife edge thickness: 0.5 mm

-Number of measurement ports: Five

-Angle tolerance of port setup: ±0.1°

-Accessories: Two detachable posts for the Slide & Fix system per port

-Detector port: 30 mm with circumferential frame (Ø = 58 mm) with lateral V-notch

-Mounting: Bench-top stand with base plate

-Weight: approx. 1.1kg
