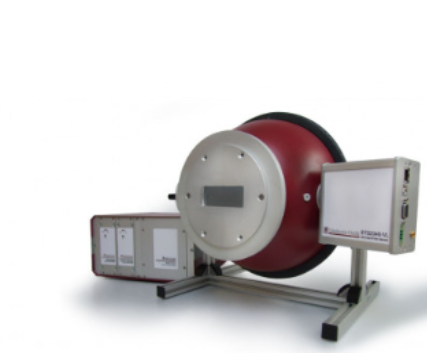

Gigahertz-Optik TFCT25 Measurement system for the color transmission of fibers and flux, spectrum and color of cw and pulse operated LEDs. (350 nm ~ 1050 nm)

-Measurement range:

Luminous flux: Integral 0.05 mlm to 141 klm., Spectral for typical white LEDs: 5.5 mlm to 43000 klm.

Spectral radiant flux: 8E-7 W/nm to 2E3 W/nm

Spectral range: 350 nm to 1050 nm

-Typical applications: Quality assurance in production of laterally emitting light guides. Inspecting of incoming products (single LEDs), in-line design

-Calibration: Factory calibration. Traceable to PTB calibration standards

-Integrating sphere: ISD-25-V01

Datasheet
