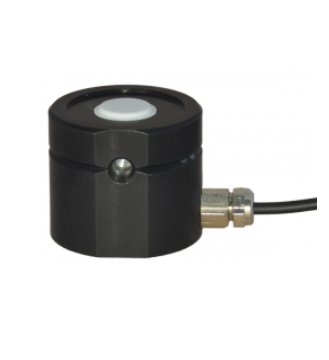

Gigahertz-Optik RW-3701-2 High Sensitivity Broadband Irradiance Detector (Calibration data connector)

Spectral responsivity: radiometric (400 - 500) nm

Typical responsivity: 35 nA/(W/m²)

Max. signal current: 1 mA

Input optics: 11 mm Ø diffusor window

Input optics: Cosine F.O.V.

Housing: 37 mm Ø, 32 mm height

Mounting: side M6 thread hole

Connector: coaxial cable 2 m Long, with calibration data connector (-2)

Temperature range: 5 - 40°C

min. signal current: depends on optometer

Rise time: 2.5 µs

Measurement ranges:

min (0.1 pA NEI): 2.86E-06 W/m²

max (200 µA): 5.71E+03 W/m²

max (1 mA): 2.86E+04 W/m²
