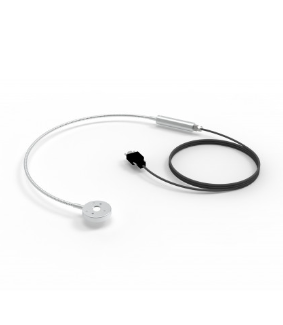

Gigahertz-Optik RCH-013-2 Blue and UV Curing Detectors (Calibration data connector)

Measurement ranges: Spectral responsivity 240 nm to 550 nm. Linear measuring range from 0.1 mW / cm² to 40,000 mW / cm² with measuring device X1-1

Input optics: 9 mm, diffuser

Dimensions:

Measurement head: Height: 8 mm / Diameter: 37 mm

Detector element: Length: 65 mm / Diameter: 15 mm

Light Guide: Flexible: 50 cm / 20 inch

Typical responsivity:

365 nm LED: 5.5 nA/(mW/cm²)

405 nm LED: 7.7 nA/(mW/cm²)

460 nm LED: 7.1 nA/(mW/cm²)

max. Irradiance: 40 W/cm²

Max. signal current: 100 µA

Temperature range: up to + 100 °C (short-term)

Humidity: <80%, non-condensing

Cable Length: 50 cm

Connector: Calibration (-2)
