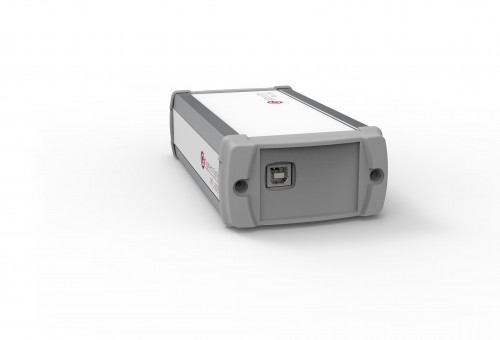

Gigahertz-Optik PFL-200 Fast Flicker Meter (50 ms~ 12000 ms)

Measurement range: depends on detector

Calibration: Factory calibration of amplifier, traceable to national standards

Sensor: BNC connector (-1)

min. signal current: 0.1 pA

Max. signal current: 20 µA

Microprocessor: 16Bit, 25ns instruction cycle time

Power Supply: 5VDC, 450mA per USB

Interface: USB 2.0 (Type B USB)

Option WiFi: WiFi 2.4 GHz (external antenna, range > 100m) on request

Temperature range

Operation: +10°C bis +30°C

Storage: -10°C bis +50°C

Transport case: 333mm x 280mm x 70mm, 650g

Dimensions: 159mm x 85mm x 45mm (Length x Width x Height)

Weight: 430 g
