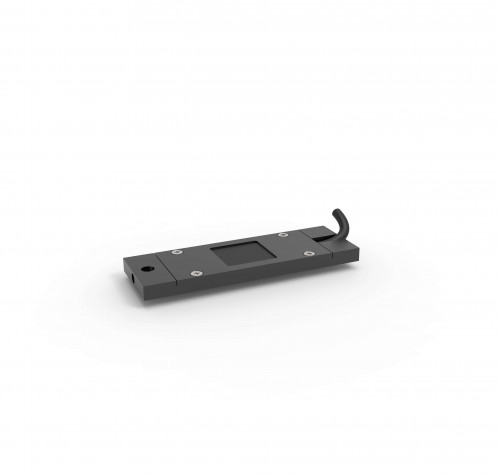

Gigahertz-Optik PD-MSD-TP-5 Microscope Laser Power Detector (100 µW ~ 2 W)

Measurement ranges: depending on type

Typical applications: laser measurement in microscopes

Calibration: laser power at different wavelength (depending on type)

Spectral radiant power:

PD-MSD-TP (300 nm to 10000 nm): 100 µW to 2 W (example configuration, other ranges are possible on request)

Housing:

18 mm x 18mm active area

45 mm x 25.2 mm x 5 mm dimensions

Connector: -5

Temperature range: 5-40°C

Cable Length: 2 m (Standard length, other lengths on request)

Datasheet
