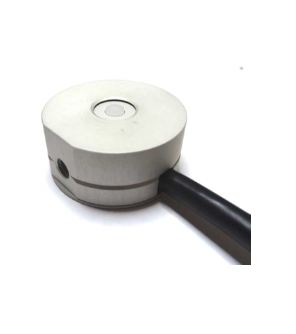

Gigahertz-Optik MDC4-1-UVBLUE Detector With Wavelength Detection (ITT connector)

Spectral responsivity: 300 nm - 700 nm

Input optics: 5mm diffuser, cos FOV, f2 < 5%

Irradiance Range: max current X1: 0.2 mA

@270 nm: 22 W/cm²

@365 nm: 7.6 W/cm²

@385 nm: 6 W/cm²

@405 nm: 5 W/cm²

@435 nm: 4.2 W/cm²

@460 nm: 3.8 W/cm²

@700 nm: 12.8 W/cm²

- f2 (directional response/cosine error): f2 < 5%

- Calibration: Calibration of the irradiance sensitivity in A/(W/m²). Spectral calibration of all channels for measurements in the wavelength range (300 - 700) nm.

- Mounting: side M6 thread hole

- Connector: coaxial cable 2m long with ITT (-4) connector

- Dimensions: diameter: 37mm, height: 17 mm

- Humidity: 0 – 70% rH; non-condensing

- Temperature range:

+ Storage: (-10 to +50)°C

+ Usage: (+10 to +40)°C
