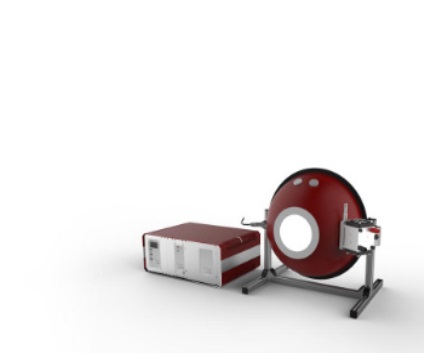

Gigahertz-Optik ISS-30-VA-V01 Integrating sphere (300 nm ~1100 nm, 100 mm)

-Measurement range:

Calibrated spectral range: 300 nm to 1100 nm

Luminance: max. 3500 cd / m²

Spectral radiance: see graph with spectral radiance

CCT: 2960 K

Setting range of intensity: (0 - 3500) cd / m² (at CCT 2960K with LH-100F-UV)

-Typical applications: Calibration standard for spectral radiance and uniformity for spectroradiometers, multispectral and hyperspectral sensors and camera systems, and the like.

-Calibration: Spectral radiance 300 nm to 1100 nm

-Calibration uncertainty:

luminance (cd/m²): ± 3,5%

color temperature [K]: ± 2%

-Luminance:

Range: Continuous adjustable

(0 - 3500) cd/m² (at CCT 2960K with LH-100F-UV)

VA 100 % offen:

3500 cd/m² (at CCT 2960K with LH-100F-UV)

VA 10 % offen:

350 cd/m² (at CCT 2960K with LH-100F-UV)

VA 1 % offen:

35 cd/m² (at CCT 2960K with LH-100F-UV)

-Light Output Port: 100 mm

-Lamp Connection: Two Banana type plugs

-Specifications: 300 mm Bariumsulfate sphere with 100 mm light entrance port
