Gigahertz-Optik ISD-50HF-V01 Integrating sphere (1.2 lm ~ 120,000 lm, 360 nm ~ 830 nm)

-Measurement range: 1.2 lm to 120,000 lm, 360 nm to 830 nm

-Typical applications: Inspection of incoming products (LED lamps), quality assurance in production processes, design

-Calibration: Factory calibration. Traceable to international standards

-Calibration uncertainty: Luminous flux calibration ±5%

-Input optic - ISD-50HF-V01

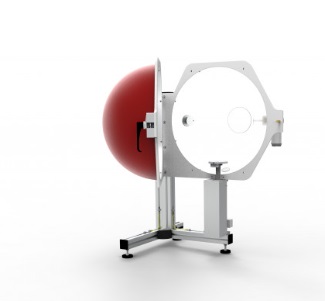

Integrating sphere with barium sulfate coating. 500mm internal diameter. An openable hemisphere. UMSH-AP-500 height-adjustable sample holder. Baffle between the detector and the sphere center as well as the detector for lamps with an extent of up to 100 mm. 12V/50W Halogen auxiliary lamp. Table stand.

-Typical measurement time:

BTS256-LED: max. 1000 lm ≤ 5 ms (white light)

BTS256-LED: min. 10 mlm ≤ 30 s (white light)

BTS256-LED with ISD-50HF-V01: max. 120000 lm ≤ 5 ms (white light)

BTS256-LED with ISD-50HF-V01: min. 1.2 lm ≤ 30s (white light)

-max. luminous flux:

BTS256-LED typ. 70000 lm

BTS256-LED with ISD-50 typ. 8000 klm

-Noise equivalent luminous flux:

BTS256-LED Tester typ. 0.05 mlm

BTS256-LED Tester with ISD-50-V01 typ. 10 mlm

Datasheet
