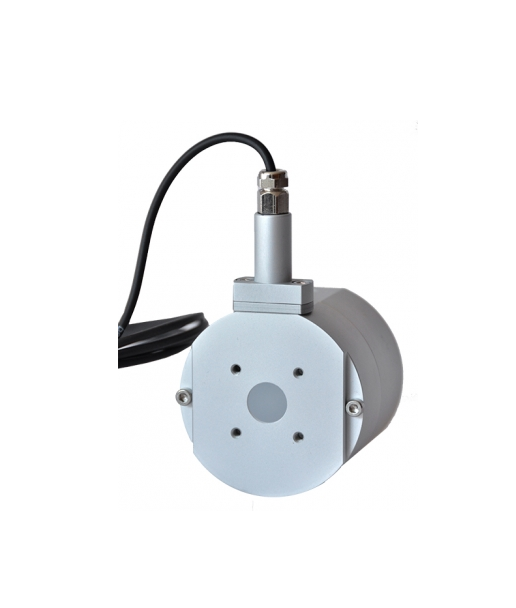

Gigahertz-Optik ISD-5-VL-1 V(lambda) Detector

- Spectral responsivity: photometric V(λ)

- f1' (spectral mismatch): f1 ≤ 5%

- Typical responsivity: 15 nA/lm

- Max. signal current: 1 mA

- Input optics: 12.7 mm Ø

- Entrance Port: 50 mm

- Coating: BaSO4

- Mounting: M6 thraded hole

- Sensor: VL-1101

- Connector: coaxial cable 2m Long, with BNC connector (ISD-5-VL-1)

- Temperature range: 5 - 40°C

- min. signal current: depends on optometer

- Rise time: 17 ns

- Measurement ranges:

+ min (0.1 pA NIE): 6.67E-06 lm

+ max (200 µA): 1.33E+04 lm

+ max (1 mA): 6.67E+04 lm
