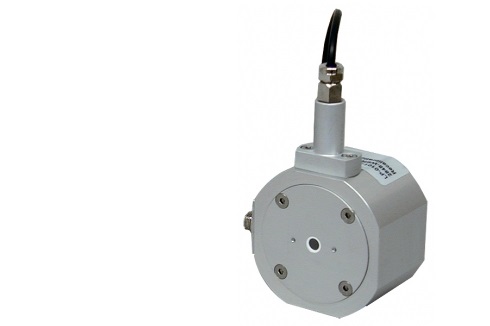

Gigahertz-Optik ISD-3P-Si-2 Integrating sphere detector (Calibration data connector, 400 nm - 1100 nm)

Calibration: Calibration of spectral radiant power responsivity in A/W in 10nm steps from 400 nm - 1100 nm

Spectral range: 400 nm - 1100 nm radiometric

Typical responsivity:

8.5E-03 A/W @ 630 nm

1.15E-02 A/W @ 900 nm

(attenuation possible)

Measurement ranges:

ISD-3P-Si @ 600 nm

min (0.1 pA): 1.18E-11 W

max (200 µA): 2.35E-02 W

max (1 mA): 1.18E-01 W

ISD-3P-Si @ 900 nm

min (0.1 pA): 8.70E-12 W

max (200 µA): 1.74E-02 W

max (1 mA): 8.70E-02 W

max. Radiant Power (CW): may be limited by max. operation temperature

Max. signal current: 1 mA

Input optics: 5 mm Ø

Sphere diameter: 30 mm

Coating: synthetic ODM98

Sensor: Si photodiode

Spectral range: 400 - 1100nm

Rise time: 0.1 µs

Mounting: M6 thraded hole

Connection cable: coaxial cable 2m Long, with ITT (-2) connector

Temperature range: 5 - 40°C
