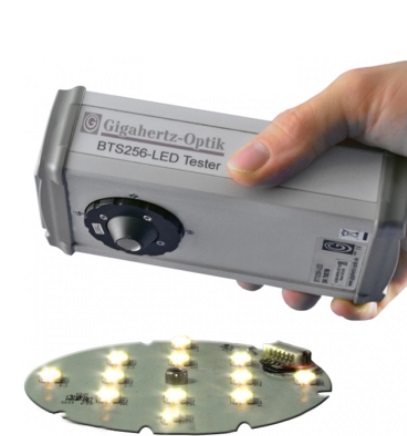

Gigahertz-Optik BTS256-LED Compact BiTec Spectroradiometer (360 - 830 nm, 10 mlm - 1100 lm)

-Measurement range:

Luminous flux: 10 mlm - 1100 lm, spectral range: 360 nm - 830 nm, bandwidth: 5 nm with optical bandwidth correction according to CIE 214

-Typical applications: Goods-in inspection of individual LEDs, quality assurance of assembled LEDs in production processes, Research and development testing.

-Calibration: For diffuse emitting and narrow beam LEDs. Factory calibration. Traceable to international calibration standards.

-Calibration uncertainty: ±5% for luminous flux

-Sensor: Bi-Technology sensor with a photometric broadband detector and a array spectrometer. Integrated aperture for automatic dark signal adjustment.

-Input optics: Integrating sphere with synthetic ODM98 coating and protective window at the sphere port. Cone adapter coated with ODP97 for radiation absorption. 10 mm diameter measurement port. LED auxiliary lamp.

Adapter change effect ± 0.5 %

Max. xy responsivity deviation of the 10mm measurement port ±2%

Max. z responsivity deviation of the 10mm measurement port ±2% (1 mm to 11mm)

-Microprocessor: 16Bit, 25ns instruction cycle time

-Power Supply: 5VDC to 7VDC, 250mA peak during capacitor charging of the auxiliary lamp

-Interface: USB 2.0 (Type B USB port)

-Temperature range:

Operation: (10 to 30)°C

Storage: (-10 to 50)°C

-Dimensions: 160 mm x 85 mm x 60 mm (Length x Width x Height)

-Weight: 500 g

-Transport case: Plastic hard-top casing, 333 mm x 280 mm x 70 mm, 650g
